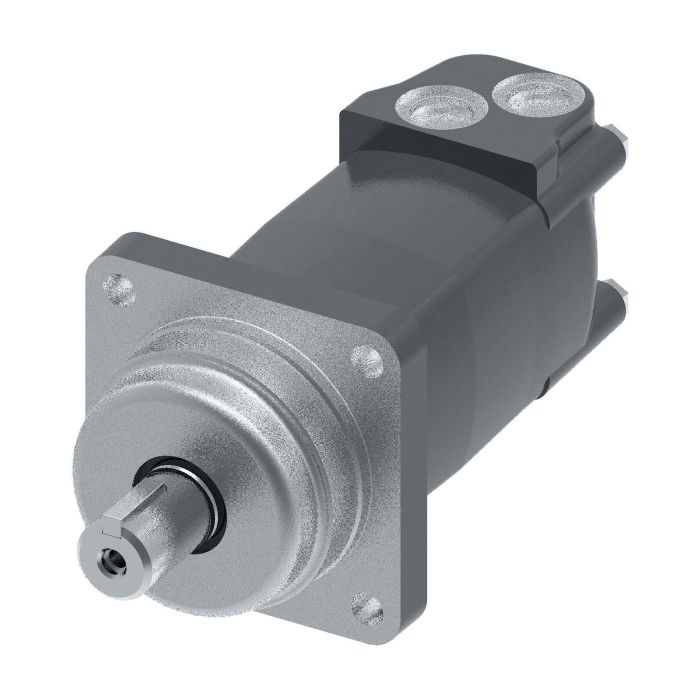

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

Ask A Question

Description & Features

Ideal for use in swing motors brush cutters mowers and harvesting equipment this motor is designed with a displacement of 24.00 cu in/rev. The 2 Bolt SAE A Mounting Flange facilitates easy installation.

Featuring a highly-efficient Geroler motor it ensures significant energy savings while the 7/8-14 St.Thd. O-Ring Ports provide optimal fluid control. The standard configuration can handle a maximum operating temperature of 180 F and a case pressure of up to 2000 PSI without a drain.

The torque rating reaches up to 775 newton metre and the SAE C Splined 14T Shaft ensures reliable power transmission. Recommended for use with premium quality anti-wear hydraulic fluid.

MPN: 104-1229-006

Supplier Part Number: 104-1229-006

Specifications

Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
11.66 in L x 5.16 in W x 6.96 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
395
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
2000 Series
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Jean S on Aug 17, 2025, 9:35 AM
I'm looking at this motor for a mower project, and I'm trying to get a sense of how much fluid it needs. Is there a range that works best?
Answer by: Customer Support on Aug 19, 2025, 6:58 AM
For optimal performance, this motor needs a fluid viscosity between 70 and 200 SUS at operating temperature.
