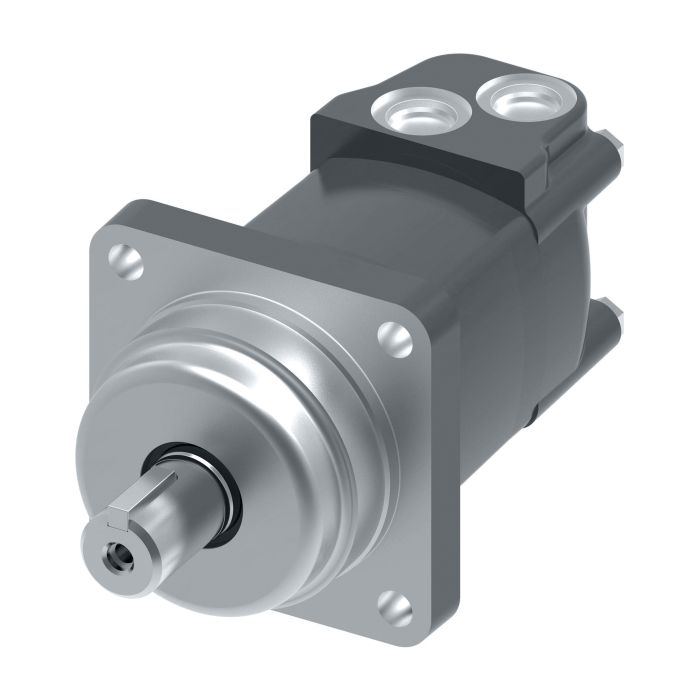

2000 Series Geroler Motor, 29.80 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

The Danfoss Power Solutions II LLC (Char-Lynn) 2000 Series Disc Geroler Standard motor is highly efficient offering energy savings with its innovative Geroler motor design. With a displacement of 29.80 cubic inches per revolution this motor features a 2 Bolt SAE A mounting flange and an SAE C splined 14T shaft ensuring secure and straightforward installation.

Engineered for demanding applications like swing motors brush cutters mowers and harvesting equipment this motor boasts the lowest pressure drop in the industry making it an optimal choice for critical tasks. The 7/8-14 St.Thd. O-Ring ports enhance its versatility while the maximum operating temperature of 180F ensures reliable performance in various environments.

Fluid requirements include a premium-quality anti-wear type hydraulic fluid with viscosity ranging from 100-200 SUS. Maintaining a maximum case pressure of 2000 PSI without a case drain this motor requires an external case drain line for continuous back pressure over 2000 PSI. Recommended break-in includes approximately one hour at 30% of rated pressure for optimal motor life.

Supplier Part Number: 104-1422-006

MPN: C1AH26
