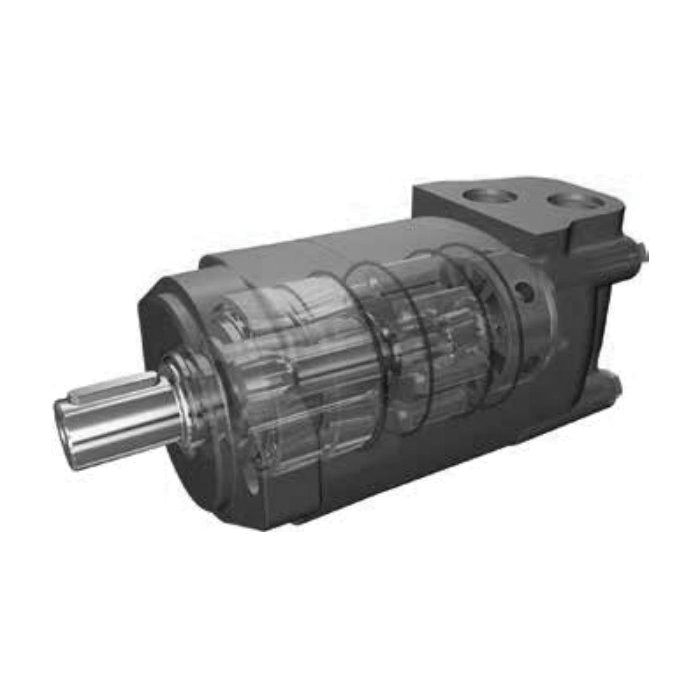

main product photo

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports, 2000 psi cross-over relief

Ask A Question

Description & Features

The Danfoss / Eaton Char-Lynn 2000 Series Disc Geroler Standard motor is a highly efficient solution for various industrial applications including swing motors brush cutters mowers and harvesting equipment. This motor features a displacement of 18.70 cubic inches per revolution and operates with a 2 Bolt SAE A mounting flange. The 14-tooth splined shaft ensures a reliable and secure connection while the 7/8-14 UNF-2B SAE staggered O-ring ports ensure optimal fluid transfer.

The motor operates at a maximum case pressure of 2000 PSI without a case drain. For continuous pressures above 2000 PSI using an external case drain line is recommended to maintain motor integrity. The unit boasts the lowest pressure drop in the industry enhancing energy savings by making it an efficient Geroler motor.

Engineered for performance it operates effectively with a fluid viscosity range of 100-200 SUS and up to 180 F maximum operating temperature. To maximize the motor lifespan a recommended break-in period of running the motor at 30% of rated pressure for approximately one hour before full-load application is advised.

MPN: 2000 Series Geroler Motor 18.70 cu in/rev 2 Bolt SAE A Mounting Flange SAE C Splined 14T Shaft 7/8-14 St.Thd. O-Ring Ports 2000 psi cross-over relief

Supplier Part Number: 104-4071-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
10.05 in L x 5.16 in W x 4.33 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
305
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
B
Series
2000 Series
Shaft Type
Splined
Valve Type
Disc

Similar Products

Model Number Displacement Inlet Pressure Port Type Port Location Port Size Shaft Type Shaft Size Mounting Type Dimensions Segment Code Price Action
2000 Series Geroler Motor, 11.90 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1012 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

5.73 in L x 4.69 in W x 4.69 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1031 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.74 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1002 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.54 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1022 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.35 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1024 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 29.80 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1422 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

11.91 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1030 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1034 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8.36 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1025 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1068 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1033 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1229 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

11.66 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1028 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.85 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1035 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8.8 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1014 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

8.13 in L x 6.2 in W x 6.2 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1023 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.54 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1006 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.41 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, Wheel Motor Mounting Flange, 1-1/4 in. Tapered Shaft, 7/8-14 St.Thd. O-Ring Ports,

105-1060 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Tapered Square Keyed

4-Bolt Wheel Flanged

10.03 in L x 5.28 in W x 5.28 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1029 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.3 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1003 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 29.80 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1420 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

12.17 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports, Low Gloss Black Paint

104-1671 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

8.49 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1228 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1027 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.41 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 4 Bolt Magneto Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports, Black Paint

104-3371 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

4-Bolt Flanged

8.74 in L x 5.34 in W x 4.45 in H

B

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1067 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Tapered Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1011 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Tapered Square Keyed

2-Bolt Flanged

9.91 in L x 5.16 in W x 6.96 in H

B

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1143 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1005 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1004 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE B Mounting Flange, 1 in. 6B Spline Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1196 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

1 in Dia

2-Bolt Flanged

7.74 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1013 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

6.09 in L x 6.2 in W x 6.2 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1026 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1001 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.35 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1064 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

8.99 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1015 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

7.17 in L x 4.69 in W x 4.69 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1007 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.85 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1065 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 4 Bolt Mounting Flange, 32mm Straight Keyed Shaft, G 1/2 BSP Ports, Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings

104-1386 2000 Series Geroler Motor

BSP

Side, Staggered

Straight Rectangular Keyed

32 mm Dia

4-Bolt Square Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1044 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.69 in L x 5.16 in W x 4.33 in H

A

Product Questions & Answers (2)

Question by: Sherry M on Sep 27, 2025, 2:19 PM
got a mower setup that needs a 2-bolt SAE A mount and a 14 tooth SAE C spline. is that the exact flange and shaft on this motor?
Answer by: Customer Support on Sep 29, 2025, 6:32 AM
It comes with a 2 Bolt SAE A mounting flange and an SAE C splined 14T shaft, so those two connection points match what you described.
Question by: Ross B on Feb 12, 2026, 8:16 AM
What kind of machines is this motor typically found on?
Answer by: Customer Support on Feb 13, 2026, 9:50 AM
Commonly, this Char-Lynn 2000 series motor works well for swing motors, brush cutters, mowers, and harvesting equipment.
