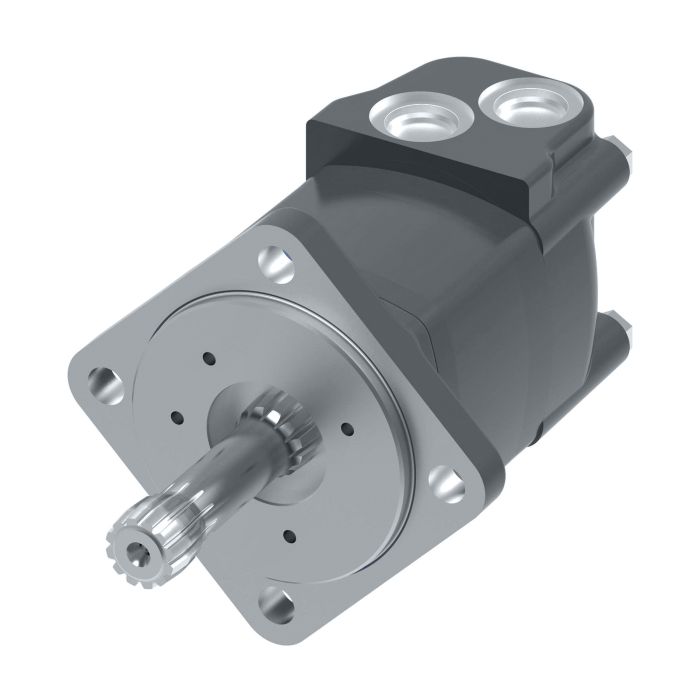

main product photo

2000 Series Geroler Motor, 14.90 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

Ask A Question

Description & Features

The Danfoss / Eaton Char-Lynn 2000 Series Disc Geroler Bearingless motor featuring a displacement of 14.90 cu in/rev and a bearingless mounting flange is designed for high-efficiency energy savings. Its standard configuration includes .875-14 UNF-2B SAE O-Ring Ports for reliable fluid transfer.

This versatile motor is ideal for applications such as swing motors brush cutters & mowers and harvesting equipment. It delivers a torque rating of 660 newton meters while maintaining operational efficiency even under continuous back pressure up to a maximum 2000 PSI without the need for a case drain line.

Engineered for optimal performance it handles a maximum operating temperature of 180F with recommended fluid viscosities ranging from 70 SUS to 200 SUS. To maximize motor life perform a break-in process at 30% of rated pressure before applying full load. It also recommends adhering to a filtration level per the ISO Cleanliness Code level 18/13.

Maintain the integrity of hydraulic functions with premium quality anti-wear type hydraulic fluid. Note that the recommended design code is 6 to ensure compatibility and performance.

MPN: 106-1013-006

Supplier Part Number: 106-1013-006

Specifications

Brand
Danfoss
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
6.09 in L x 6.2 in W x 6.2 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
245
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
4-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Segment Code
A
Series
2000 Series
Valve Type
Disc

Similar Products

Model Number Displacement Inlet Pressure Port Type Port Location Port Size Shaft Type Shaft Size Mounting Type Dimensions Segment Code Price Action
2000 Series Geroler Motor, 11.90 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1012 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

5.73 in L x 4.69 in W x 4.69 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1031 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.74 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1002 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.54 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1022 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.35 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1024 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 29.80 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1422 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

11.91 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1030 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1034 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8.36 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1025 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1068 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1033 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1229 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

11.66 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1028 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.85 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1035 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8.8 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1014 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

8.13 in L x 6.2 in W x 6.2 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1023 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.54 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1006 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.41 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, Wheel Motor Mounting Flange, 1-1/4 in. Tapered Shaft, 7/8-14 St.Thd. O-Ring Ports,

105-1060 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Tapered Square Keyed

4-Bolt Wheel Flanged

10.03 in L x 5.28 in W x 5.28 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1029 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.3 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1003 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 29.80 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1420 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

12.17 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports, Low Gloss Black Paint

104-1671 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

8.49 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1228 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1027 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.41 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 4 Bolt Magneto Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports, Black Paint

104-3371 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

4-Bolt Flanged

8.74 in L x 5.34 in W x 4.45 in H

B

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1067 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Tapered Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1011 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Tapered Square Keyed

2-Bolt Flanged

9.91 in L x 5.16 in W x 6.96 in H

B

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1143 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1005 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1004 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports, 2000 psi cross-over relief

104-4071 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

10.05 in L x 5.16 in W x 4.33 in H

B

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE B Mounting Flange, 1 in. 6B Spline Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1196 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

1 in Dia

2-Bolt Flanged

7.74 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1026 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1001 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.35 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1064 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

8.99 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1015 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

7.17 in L x 4.69 in W x 4.69 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1007 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.85 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1065 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 4 Bolt Mounting Flange, 32mm Straight Keyed Shaft, G 1/2 BSP Ports, Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings

104-1386 2000 Series Geroler Motor

BSP

Side, Staggered

Straight Rectangular Keyed

32 mm Dia

4-Bolt Square Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1044 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.69 in L x 5.16 in W x 4.33 in H

A

Product Questions & Answers (1)

Question by: Brett C on Jan 27, 2026, 7:58 PM
got a mower swing motor that sees back pressure pretty regular. do i need to plumb in a case drain on this one or not
Answer by: Customer Support on Jan 29, 2026, 9:19 AM
For continuous back pressure up to 2000 PSI, it can run without a case drain line. If your application is going to stay over 2000 PSI continuous back pressure, then you would add an external case drain line and route it so the motor case stays full at all times.
