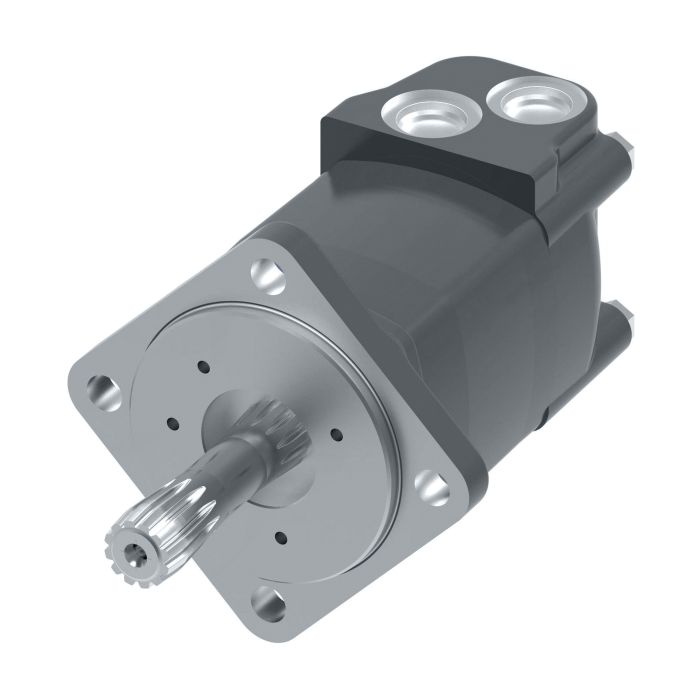

2000 Series Geroler Motor, 18.70 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

Ask A Question

Description & Features

Designed for swing motors, brush cutters, mowers, and harvesting equipment, this bearingless Geroler motor from Eaton Char-Lynn delivers a displacement of 18.70 cu in/rev and a torque rating of 765 N·m. The bearingless mounting flange configuration suits applications where the motor integrates directly into the driven assembly without a dedicated output shaft.

The 2000 Series Geroler Motor uses a disc Geroler design recognized for low pressure drop and efficient power conversion. Ports are 7/8-14 straight-thread O-ring type in a staggered arrangement, and maximum case pressure is rated at 2,000 PSI without a case drain. Recommended operating fluid is premium anti-wear hydraulic fluid, with a viscosity range of 100–200 SUS and a maximum operating temperature of 180°F.

Filtration to ISO Cleanliness Code level 18/13 is recommended for reliable service life. Available in standard, wheel, or bearingless configurations, the 2000 Series is a well-established platform across mobile and agricultural hydraulic applications.

SKU: 106-1014

Supplier Part Number (MPN): 106-1014-006

Alternate Part Numbers: C1GJ55

Specifications

Brand
Danfoss
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
8.13 in L x 6.2 in W x 6.2 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
305
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
4-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Segment Code
A
Series
2000 Series
Valve Type
Disc

Similar Products

Model Number Displacement Inlet Pressure Port Type Port Location Port Size Shaft Type Shaft Size Mounting Type Dimensions Segment Code Price Action
2000 Series Geroler Motor, 11.90 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1012 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

5.73 in L x 4.69 in W x 4.69 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1031 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.74 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1002 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.54 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1022 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.35 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1024 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 29.80 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1422 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

11.91 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1030 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1034 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8.36 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1025 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1068 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1033 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1229 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

11.66 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1028 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.85 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1035 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8.8 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1023 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.54 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1006 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.41 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, Wheel Motor Mounting Flange, 1-1/4 in. Tapered Shaft, 7/8-14 St.Thd. O-Ring Ports,

105-1060 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Tapered Square Keyed

4-Bolt Wheel Flanged

10.03 in L x 5.28 in W x 5.28 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1029 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.3 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1003 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 29.80 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1420 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

12.17 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports, Low Gloss Black Paint

104-1671 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

8.49 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1228 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1027 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.41 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 4 Bolt Magneto Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports, Black Paint

104-3371 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

4-Bolt Flanged

8.74 in L x 5.34 in W x 4.45 in H

B

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1067 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Tapered Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1011 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Tapered Square Keyed

2-Bolt Flanged

9.91 in L x 5.16 in W x 6.96 in H

B

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1143 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1005 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1004 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports, 2000 psi cross-over relief

104-4071 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

10.05 in L x 5.16 in W x 4.33 in H

B

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE B Mounting Flange, 1 in. 6B Spline Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1196 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

1 in Dia

2-Bolt Flanged

7.74 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1013 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

6.09 in L x 6.2 in W x 6.2 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1026 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1001 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.35 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1064 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

8.99 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1015 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

7.17 in L x 4.69 in W x 4.69 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1007 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.85 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1065 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 4 Bolt Mounting Flange, 32mm Straight Keyed Shaft, G 1/2 BSP Ports, Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings

104-1386 2000 Series Geroler Motor

BSP

Side, Staggered

Straight Rectangular Keyed

32 mm Dia

4-Bolt Square Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1044 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.69 in L x 5.16 in W x 4.33 in H

A

Product Questions & Answers (2)

Question by: Glen F on Dec 5, 2025, 3:02 PM
Will this motor work for a swing application, like on a piece of harvesting equipment?
Answer by: Customer Support on Dec 7, 2025, 6:15 AM
This 2000 Series motor is indeed suitable for swing motor applications as well as brush cutters, mowers, and other harvesting equipment.
Question by: Harvey R on Jun 18, 2025, 4:18 PM
got a swing motor setup on a cutter, would this 2000 series geroler work for that kind of job?
Answer by: Customer Support on Jun 20, 2025, 7:47 AM
Common uses for this motor include swing motor applications, brush cutters and mowers, and harvesting equipment, so it lines up well with that type of work.
