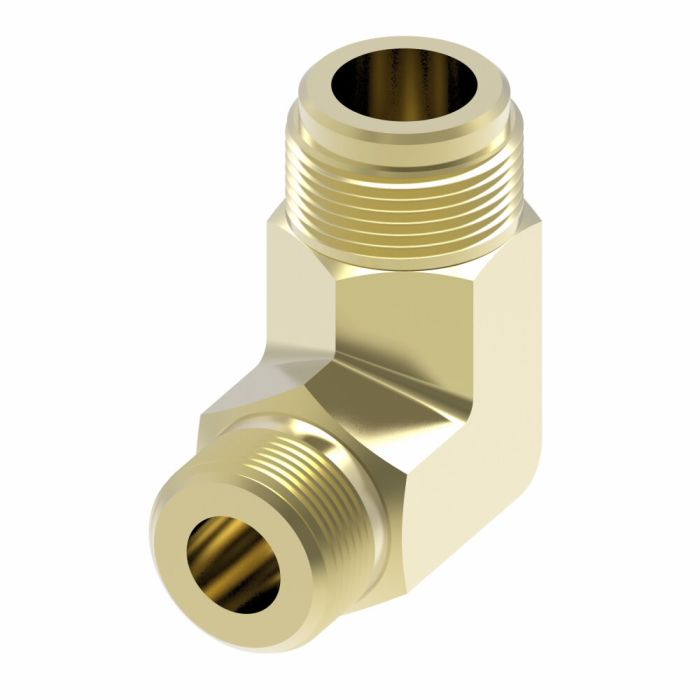

The Eaton Aeroquip NPTF Male/SAE 45° Male 90° Elbow Adapter is expertly designed for industrial applications requiring reliable connections between varying thread types. Crafted from durable brass, this adapter ensures longevity and strength in demanding environments. The 1/4" male NPTF and 7/16" male SAE 45° ends provide versatile connectivity for hydraulic systems.
Featuring Dura-Kote plating, this elbow adapter offers superior corrosion resistance, making it suitable for harsh conditions. It also supports higher operating pressures, exceeding standard SAE requirements, allowing for enhanced performance in high-pressure applications. With a drop dimension of 0.99 inches and a compact width of 0.44 inches, this adapter delivers design flexibility and easy integration into existing setups.
SKU: 2003-4-4B
Supplier Part Number (MPN): 2003-4-4B
Alternate Part Numbers: C1AU44
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1AU44, Alternate Part Number MINO-00015F68655
Drop Dimension
0.99
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.25
End Size 2
0.44
End Type 1
NPTF
End Type 2
SAE 45
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
ICC
Elbow Adapters
Item Type
NPTF Male/SAE 45° Male 90° Elbow Adapter
Language
English
Product Material
Brass
Product Width
0.44
Sub Brand
None
Supplier Part Number
2003-4-4B
Product Weight
0.08 lbs
Product Questions & Answers (1)
Question by: Brenda B on Oct 26, 2025, 9:40 PM
what's the thread setup on this thing? one end NPTF and the other SAE 45?
Answer by: Customer Support on Oct 28, 2025, 12:29 PM
Correct on both counts. One end is a 1/4 inch NPTF male thread, and the other is a 7/16 inch SAE 45 degree male flare. The 90 degree elbow body lets you redirect a line without having to bend tubing or reposition fittings around it. Brass construction keeps it compatible with most hydraulic and fluid transfer setups where steel isn't required.
