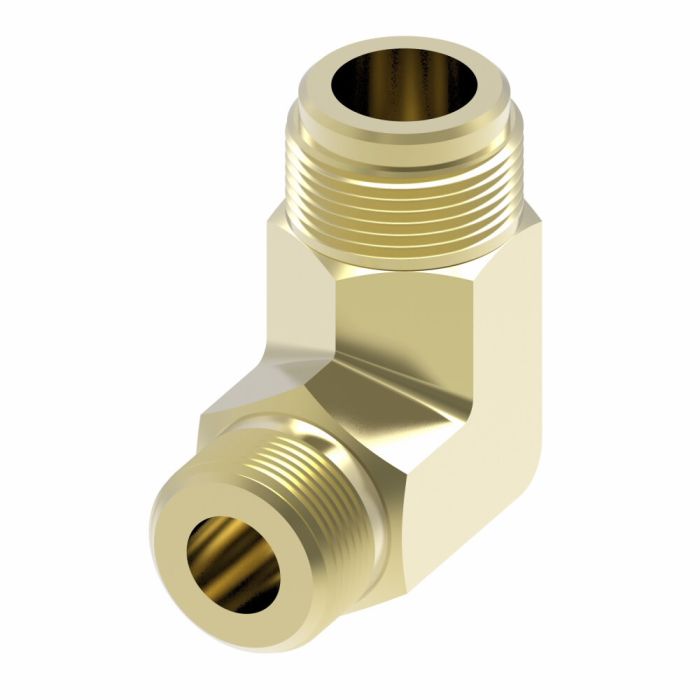

Designed for connecting 1/4 in. NPTF male to 1/2 in. SAE 45° male fittings at a 90° angle, this brass elbow adapter is built for hydraulic line routing where directional changes are required. The Danfoss / Eaton ADP ELB 1/4MP 5 M SAE belongs to the 2003 Series and delivers reliable performance in demanding industrial hydraulic applications.
Constructed from brass and finished with Dura-Kote plating, the adapter provides superior corrosion resistance suited to harsh service environments. Operating pressures exceed SAE standards, and the 2003 Series encompasses hundreds of styles, giving system designers broad configuration flexibility without compromising performance. The adapter weighs 0.8 lb and has a product width of 0.44 in., with a drop dimension of 0.9500 in.
SKU: 2003-4-5B
Supplier Part Number (MPN): 2003-4-5B
|
Alternate Part Numbers
MINO-00015F68658
|
Drop Dimension
0.95
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.25
|
End Size 2
0.50
|
End Type 1
NPTF
|
End Type 2
SAE 45
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/SAE 45° Male 90° Elbow Adapter
|
Language
English
|
Product Material
Brass
|
Product Width
0.44
|
Sub Brand
None
|
Supplier Part Number
2003-4-5B
|
Product Weight
0.07 lbs
|
