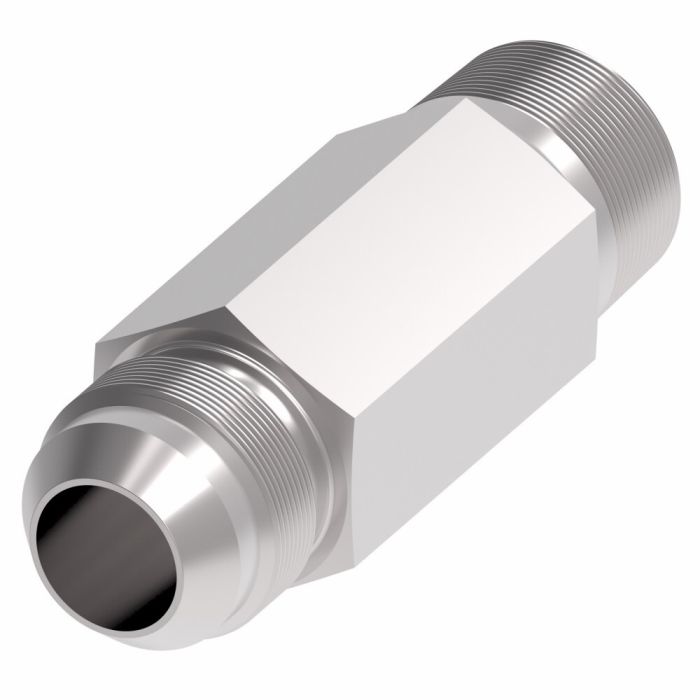

DANFOSS / EATON ADPT 1 MP 16 MJIC

Description & Features

This carbon steel adapter is suitable for various applications, including marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling. The DANFOSS / EATON ADPT 1 MP 16 MJIC features Dura-Kote plating for superior corrosion resistance and design flexibility.

This straight adapter has a 1" male NPTF end and a 0.9375" male SAE 37° flared end. It is certified to SAE J514 standards and is designed to withstand operating pressures above those standards. The minimum working temperature is -40 degrees.

SKU: 202113-16-16S

Supplier Part Number (MPN): 202113-16-16S

Specifications

Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Male JIC, MNPT	Connection Type 1 Male NPTF	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE J514	Dimensions 4 in L	Finish Dura-Kote™	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -65	Series 202113 Series	Thread Size 1-11-1/2, 15/16-12

Product Questions & Answers (1)

Question by: Ricky W on Mar 7, 2026, 3:30 PM

Hey, will this adapter work for connecting a 1" NPTF fitting to a 16 MJIC (0.9375" SAE 37°) line? Just wanna make sure before I order.

Answer by: Customer Support on Mar 9, 2026, 10:02 AM

This Eaton adapter is specifically made for that purpose; it has a 1" male NPTF end and a 0.9375" male SAE 37° flared end.
