Aeroquip Hydraulic Hose Fitting

Description & Features

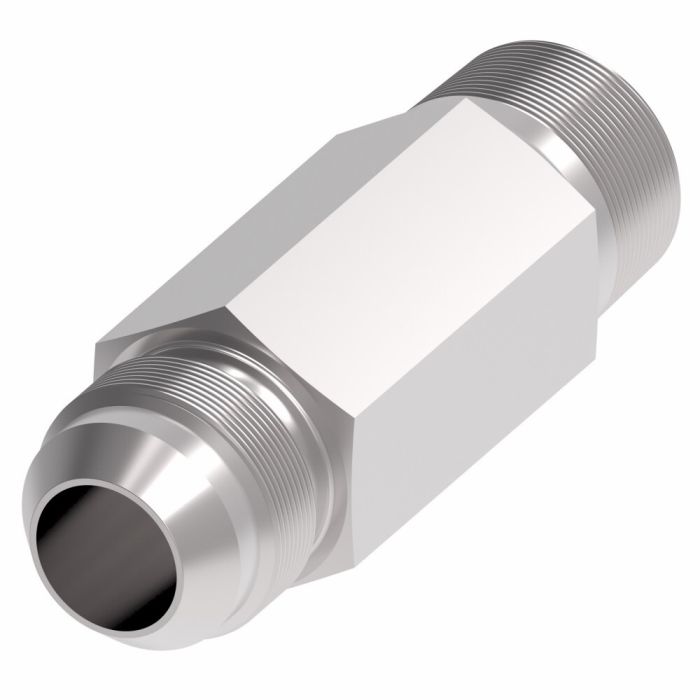

A straight adapter configuration connecting a 3/4 in. SAE 37° male flare to a 1/2 in. NPTF male thread, this Aeroquip Hydraulic Hose Fitting is manufactured from carbon steel with Dura-Kote plating for corrosion resistance across demanding service environments. It meets SAE J514 certification and is rated for higher operating pressures above standard SAE requirements.

Suited for use in marine, military, chemical processing, pulp and paper, food and beverage, and offshore drilling applications, this fitting is designed to perform across a broad temperature range with a minimum working temperature of -65°F. The 202113 Series offers design flexibility through a wide range of available styles, making it a practical choice for varied hydraulic circuit configurations in industrial settings.

SKU: 202113-8-8S

Supplier Part Number (MPN): 202113-8-8S

Specifications

Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Male JIC, MNPT	Connection Type 1 Male NPTF	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE J514	Dimensions 2.79 in L	Finish Dura-Kote™	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -65	Series 202113 Series	Thread Size 3/4-16 x 1/2-14	Tube OD 1/2 in

Product Questions & Answers (1)

Question by: Keith S on Mar 17, 2026, 12:04 PM

So this fitting goes from a 3/4 SAE to a 1/2 NPT, right? Just want to make sure I'm ordering the right thing.

Answer by: Customer Support on Mar 18, 2026, 7:52 PM

That's correct. This Aeroquip fitting adapts from a 3/4 inch SAE 37° male flare to a 1/2 inch NPTF male thread.
