Brand
Aeroquip® by Danfoss

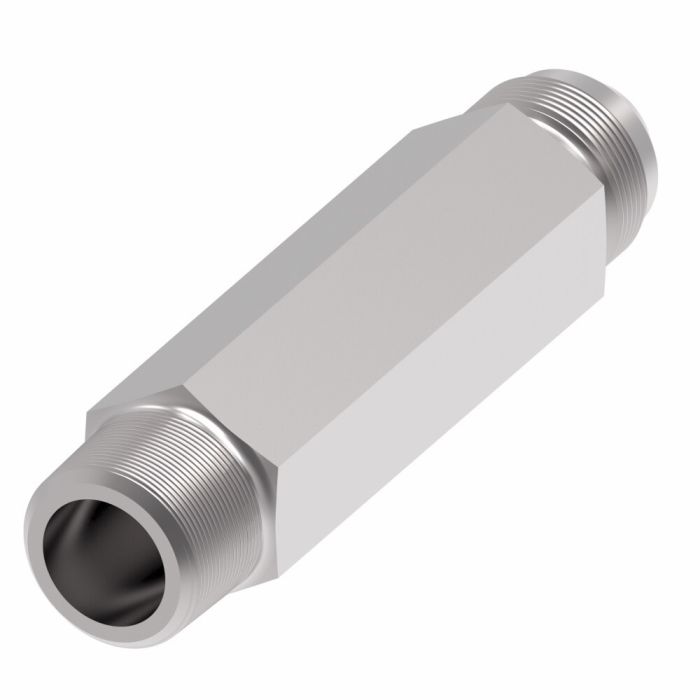

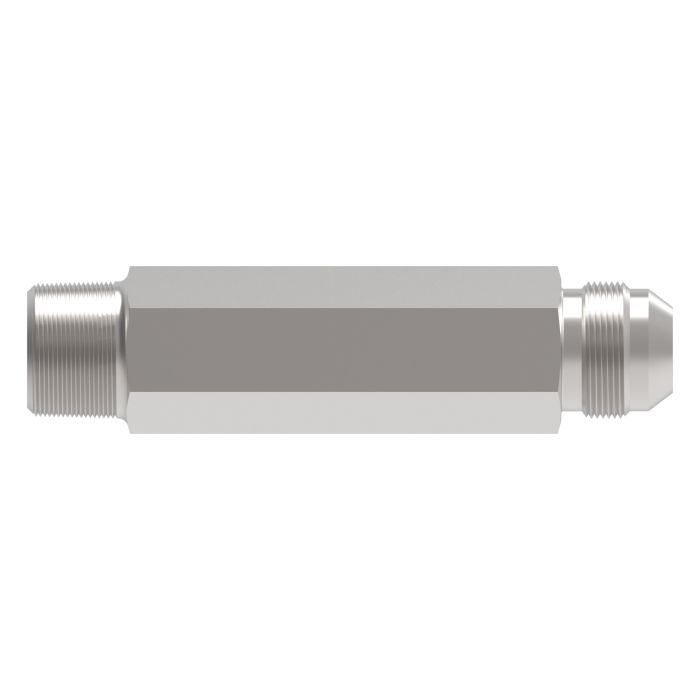

This DANFOSS / EATON #4 MP X #4 MJ (X LONG) adapter is suitable for a variety of applications, including marine and military environments, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling.
This straight adapter features Dura-Kote plating for corrosion resistance and design flexibility. Meeting SAE J514 standards, it has a male NPTF end with a 0.25 inch size and a male SAE 37° end with a 0.4375 inch size, and is constructed of carbon steel. It is designed for a minimum working temperature of -40 degrees.
SKU: 202114-4-4S
Supplier Part Number (MPN): 202114-4-4S
|
Brand
Aeroquip® by Danfoss
|
Connection Size 1
1/4 in
|
Connection Size 2
1/4 in
|
Connection Type
Male JIC, MNPT
|
Connection Type 1
Male NPTF
|
Connection Type 2
Male SAE 37 deg JIC Flare
|
Dimension Standards
SAE J514
|
Dimensions
3-1/4 in L
|
Finish
Dura-Kote™
|
Fitting Type
Adapter
|
Material
Steel
|
Material Construction
Carbon Steel
|
nmfc
50
|
Operating Temperature
-40
|
Series
202114 Series
|
Thread Size
7/16-20, 1/4-18
|
Tube OD
1/4 in
|
