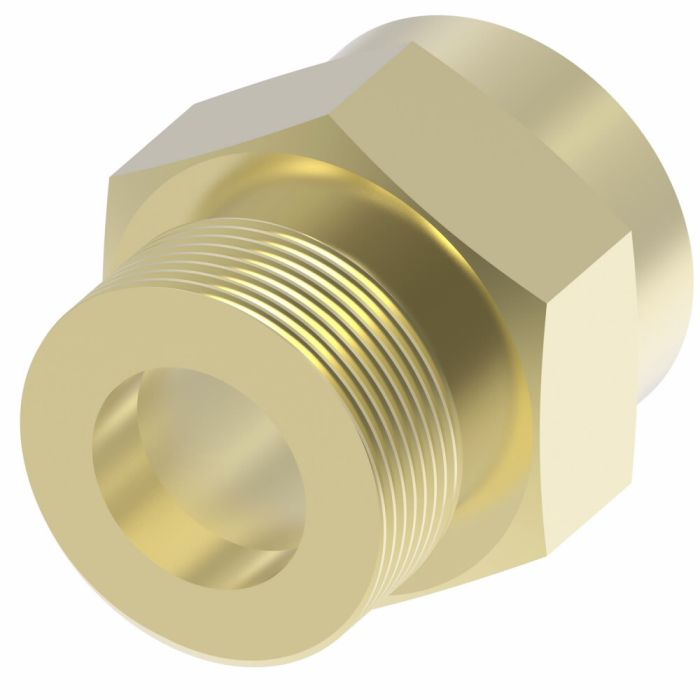

DANFOSS / EATON BRAZE ADPT FOR 5400

Description & Features

This Aeroquip by Danfoss / Eaton adapter features a UNF male connection on one end and a female connection for hose, pipe, or tube on the other. Constructed from durable brass, this DANFOSS / EATON BRAZE ADPT FOR 5400 offers a reliable connection for various hydraulic applications.

This straight adapter features Dura-Kote plating for enhanced corrosion resistance and design flexibility.

SKU: 202208-12-12B

Supplier Part Number (MPN): 202208-12-12B

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Style Manual	Connection Type Male, Tube	Connection Type 1 Male	Connection Type 2 Tube OD	Fitting Type Adapter	For Use With 5400 Series Couplings	Hex Size 1-3/8 in	Latch Type Screw-to-Connect	Material Brass	Material Construction Brass	nmfc 50	Operating Temperature -40 to 250 deg F	Series 202208 Series	Thread Size 1-1/4-18	Valve Type 2-Way

Similar Products

Model Number	Connection Size 1	Connection Size 2
202208-4-8B	1/4 in	1/2 in
202208-5-4B	5/16 in	1/4 in
202208-6-4B	3/8 in	1/4 in
202208-6-8B	3/8 in	1/2 in
202208-8-8B	1/2 in	1/2 in
202208-10-8B	5/8 in	1/2 in
202208-10-12B	5/8 in	3/4 in
202208-14-12B	7/8 in	3/4 in
202208-14-16B	7/8 in	1 in
202208-16-16B	1 in	1 in
202208-18-16B	1 in	1 in
202208-20-16B	1-1/4 in	1 in
202208-22-16B	1 in	1 in
