DANFOSS / EATON COUPLING

Description & Features

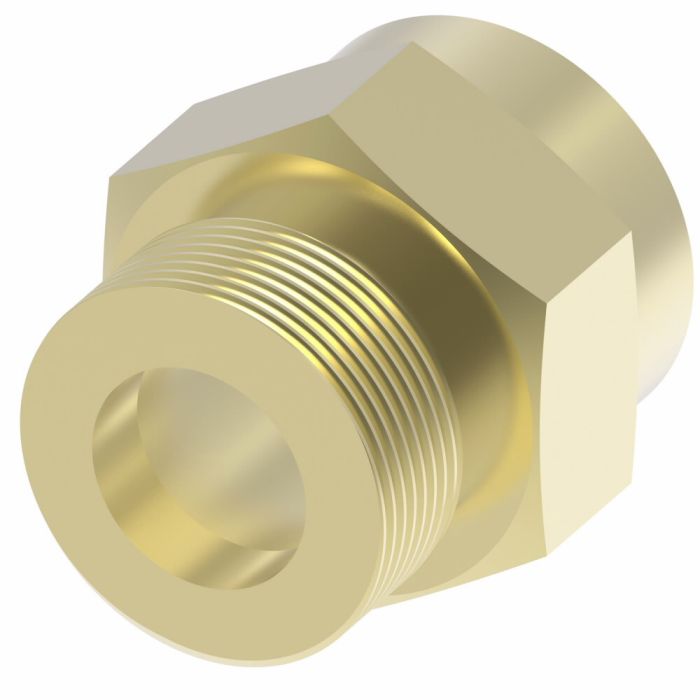

Constructed from brass and finished with Dura-Kote plating for reliable corrosion resistance, this straight adapter from the Aeroquip 202208 Series connects UNF male to UNEF end configurations and is rated for use down to -40°F. The brass construction suits refrigerant service applications, including Freon-type systems where a braze-type coupling interface is required.

The Danfoss / Eaton Coupling is part of a broad Aeroquip lineup offering hundreds of style configurations, with operating pressures designed to exceed standard SAE requirements. This makes it a dependable choice for demanding industrial refrigeration and HVAC-adjacent service connections where consistent performance is expected across a range of conditions.

SKU: 202208-20-16B

Supplier Part Number (MPN): 202208-20-16B

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1-1/4 in	Connection Size 2 1 in	Connection Style Manual	Connection Type Male, Tube	Connection Type 1 Male	Connection Type 2 Tube OD	Dimensions 1-3/16 in OD	Fitting Type Adapter	For Use With 5400 Series Couplings	Hex Size 1 x 1 in	Hose Dash Size 20, 16	Latch Type Screw-to-Connect	Material Brass	Material Construction Brass	Operating Temperature -40 to 250 deg F	Series 202208 Series	Thread Size 1-19/32-20

Similar Products

Model Number	Connection Size 1	Connection Size 2
202208-4-8B	1/4 in	1/2 in
202208-5-4B	5/16 in	1/4 in
202208-6-4B	3/8 in	1/4 in
202208-6-8B	3/8 in	1/2 in
202208-8-8B	1/2 in	1/2 in
202208-10-8B	5/8 in	1/2 in
202208-10-12B	5/8 in	3/4 in
202208-12-12B	3/4 in	3/4 in
202208-14-12B	7/8 in	3/4 in
202208-14-16B	7/8 in	1 in
202208-16-16B	1 in	1 in
202208-18-16B	1 in	1 in
202208-22-16B	1 in	1 in
