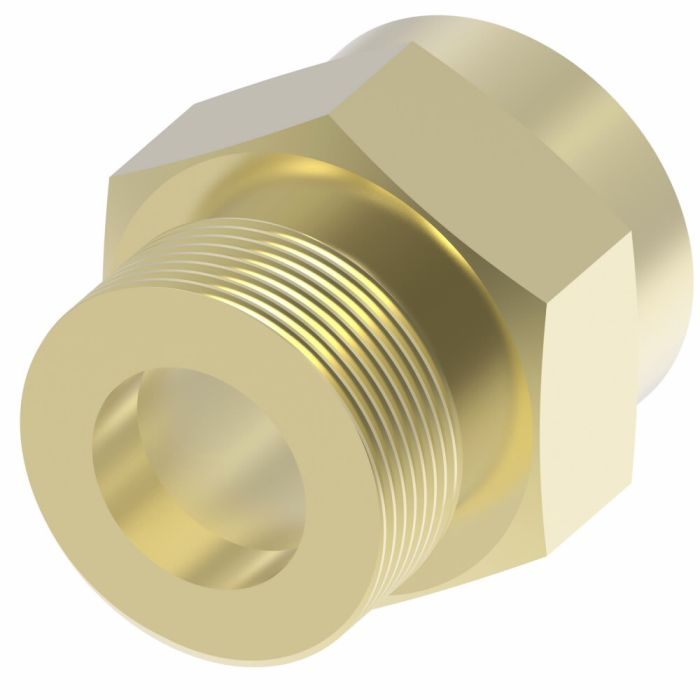

main product photo

DANFOSS / EATON BRAZE ADPT FOR 5400

Ask A Question

Description & Features

Aeroquip by Danfoss / Eaton 202208 Series straight adapters feature UNF male to hose/pipe/tube female connection types.

The DANFOSS / EATON BRAZE ADPT FOR 5400 offers design flexibility and features Dura-Kote plating for superior corrosion resistance. These adapters also provide higher operating pressures above SAE standards. Constructed from durable brass, the end sizes are 0.875 and 0.5.

SKU: 202208-6-8B

Supplier Part Number (MPN): 202208-6-8B

Alternate Part Numbers: C1AV66

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Style
Manual
Connection Type
Male, Tube
Connection Type 1
Male
Connection Type 2
Tube OD
Fitting Type
Adapter
For Use With
5400 Series Couplings
Hex Size
1 x 1 in
Latch Type
Screw-to-Connect
Material
Brass
Material Construction
Brass
nmfc
50
Operating Temperature
-40 to 250 deg F
Series
202208 Series
Thread Size
7/8-20
Tube OD
3/8 in
Valve Type
2-Way

Product Questions & Answers (1)

Question by: Wes P on Nov 4, 2025, 6:42 PM
Reckon this'll hold up okay if I'm running it pretty much all day long?
Answer by: Customer Support on Nov 6, 2025, 6:00 AM
These Aeroquip adapters are designed to handle higher operating pressures than standard SAE fittings, so they should be suitable for continuous use within their rated pressure range.
