Danfoss / Eaton BULK Hose CPLS

Description & Features

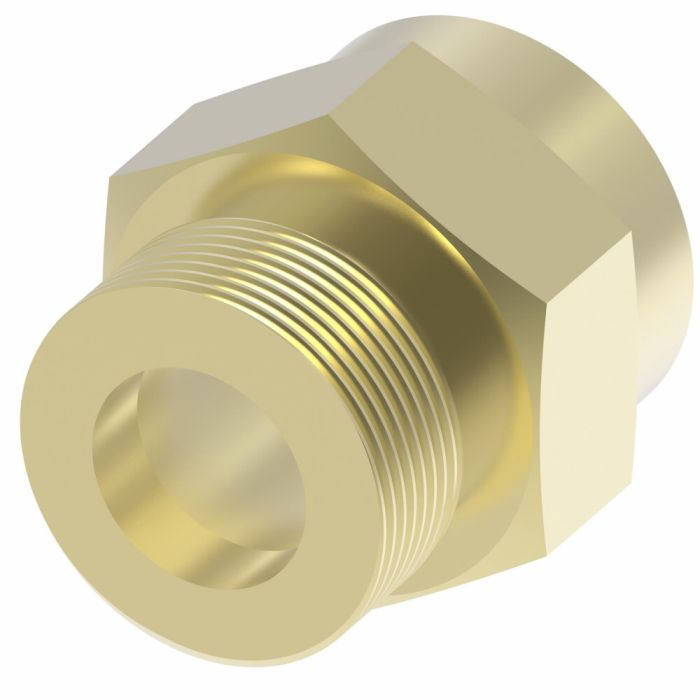

Aeroquip by Danfoss / Eaton 202208 series straight adapters feature UNF male to hose/pipe/tube female connections. These Danfoss / Eaton BULK Hose CPLS offer design flexibility with hundreds of styles to choose from for a variety of applications.

These adapters are constructed from brass and feature Dura-Kote plating for superior corrosion resistance. They are rated for minimum working temperatures down to -40 degrees. End 1 is male with a 0.875 size UNF connection; End 2 is female with a 0.5 size for line, hose or tube connections.

SKU: 202208-8-8B

Supplier Part Number (MPN): 202208-8-8B

Alternate Part Numbers: C1EV63

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Style Manual	Connection Type Male, Tube	Connection Type 1 Male	Connection Type 2 Tube OD	Fitting Type Adapter	For Use With 5400 Series Couplings	Hex Size 1 x 1 in	Latch Type Screw-to-Connect	Material Brass	Material Construction Brass	nmfc 50	Operating Temperature -40 to 250 deg F	Series 202208 Series	Thread Size 7/8-20	Tube OD 1/2 in	Valve Type 2-Way

Similar Products

Model Number	Connection Size 1	Connection Size 2
202208-4-8B	1/4 in	1/2 in
202208-5-4B	5/16 in	1/4 in
202208-6-4B	3/8 in	1/4 in
202208-6-8B	3/8 in	1/2 in
202208-10-8B	5/8 in	1/2 in
202208-10-12B	5/8 in	3/4 in
202208-12-12B	3/4 in	3/4 in
202208-14-12B	7/8 in	3/4 in
202208-14-16B	7/8 in	1 in
202208-16-16B	1 in	1 in
202208-18-16B	1 in	1 in
202208-20-16B	1-1/4 in	1 in
202208-22-16B	1 in	1 in
