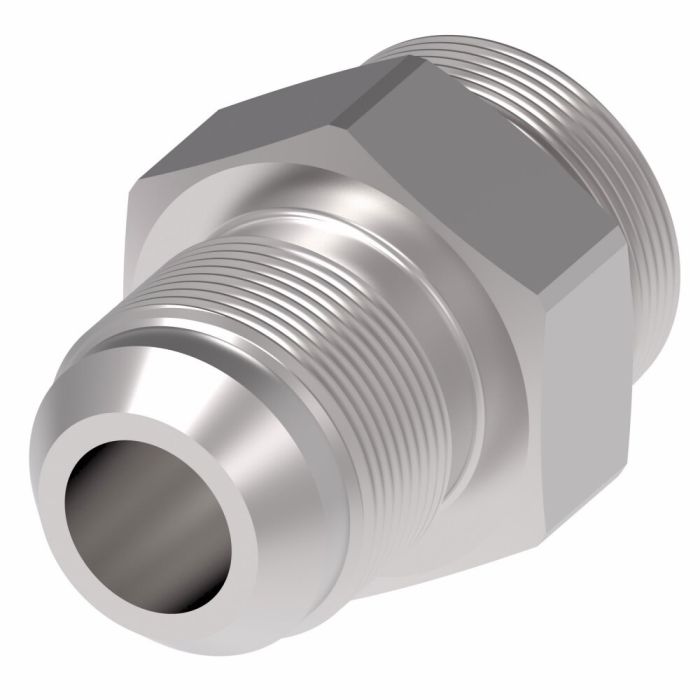

DANFOSS / EATON STEEL ADPT FOR 5400

Description & Features

Designed for demanding industrial environments, this carbon steel straight adapter connects SAE 37 Male Flare to SAE Male fittings, with end sizes of 0.4375 in. and 0.5 in. respectively. The Danfoss / Eaton Steel Adpt for 5400 is part of Aeroquip's 202220 Series and is engineered to perform above standard SAE pressure ratings.

Dura-Kote plating provides corrosion resistance suited to harsh service conditions, making this adapter a reliable choice for marine, military, offshore drilling, chemical processing, pulp and paper, and food and beverage processing applications. With hundreds of available styles in the Aeroquip straight adapter range, sourcing the right configuration for a given circuit is straightforward. Rated for a minimum working temperature of -40°F, it holds up in cold-climate and low-temperature process environments.

SKU: 202220-4-4S

Supplier Part Number (MPN): 202220-4-4S

Alternate Part Numbers: C1KJ51

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Style Manual	Connection Type Male JIC, MPT	Connection Type 1 Male SAE 37 deg JIC	Connection Type 2 Male Threaded	Dimension Standards SAE J514	Finish Dura-Kote™	Fitting Type Adapter	Hex Size 5/8 in	Latch Type Screw-to-Connect	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -40 to 250 deg F	Series 202220 Series	Thread Size 1/2-20	Tube OD 1/4 in	Valve Type 2-Way

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
202220-6-4S	3/8 in	1/4 in	1/2-20
202220-6-8S	1/2 in	3/8 in	7/8-14
202220-8-8S	1/2 in	1/2 in	7/8-14
202220-10-12S	5/8 in	3/4 in
202220-12-12S	3/4 in	3/4 in
202220-16-16S	1 in	1 in
