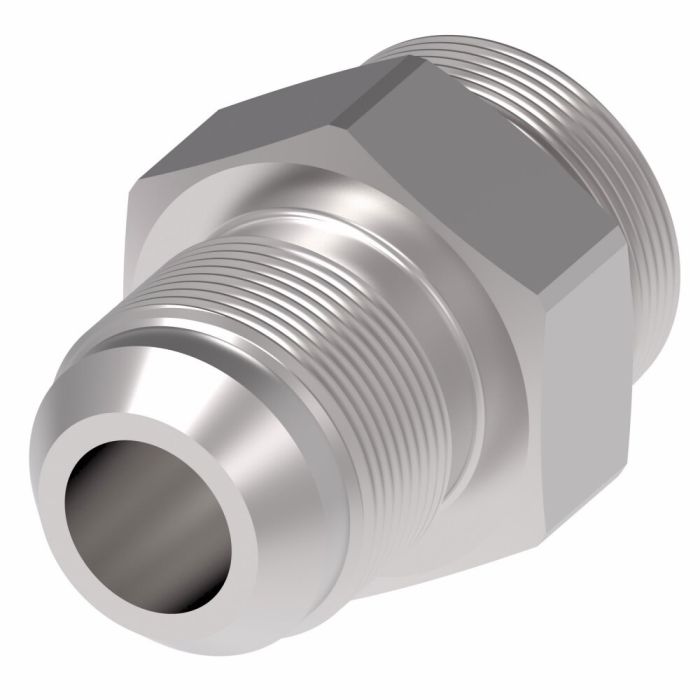

DANFOSS / EATON STEEL ADPT FOR 5400

Ask A Question

Description & Features

This Aeroquip by Danfoss / Eaton adapter is a steel straight adapter for 5400 series connections, suitable for applications within marine, military, chemical processing, pulp and paper, and food and beverage processing environments, as well as off-shore drilling.

This DANFOSS / EATON STEEL ADPT FOR 5400 features Dura-Kote plating for enhanced corrosion resistance and design flexibility. It is an SAE 37 Male Flare to SAE Male adapter. The end 1 size is 0.5625 and the end 2 size is 0.5. It has a minimum working temperature of -40 degrees.

SKU: 202220-6-4S

Supplier Part Number (MPN): 202220-6-4S

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Style
Manual
Connection Type
Male JIC, MPT
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
Male Threaded
Dimension Standards
SAE J514
Finish
Dura-Kote™
Fitting Type
Adapter
Hex Size
5/8 in
Latch Type
Screw-to-Connect
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
202220 Series
Thread Size
1/2-20
Valve Type
2-Way

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Travis E on Sep 17, 2025, 7:38 AM
So, this fitting, it'll work with, like, hydraulic lines and stuff, right? Or is it more for something else?
Answer by: Customer Support on Sep 19, 2025, 6:44 AM
This Eaton/Danfoss adapter is well-suited for hydraulic applications, especially in challenging environments like marine, military, and even food processing, thanks to its Dura-Kote plating.
