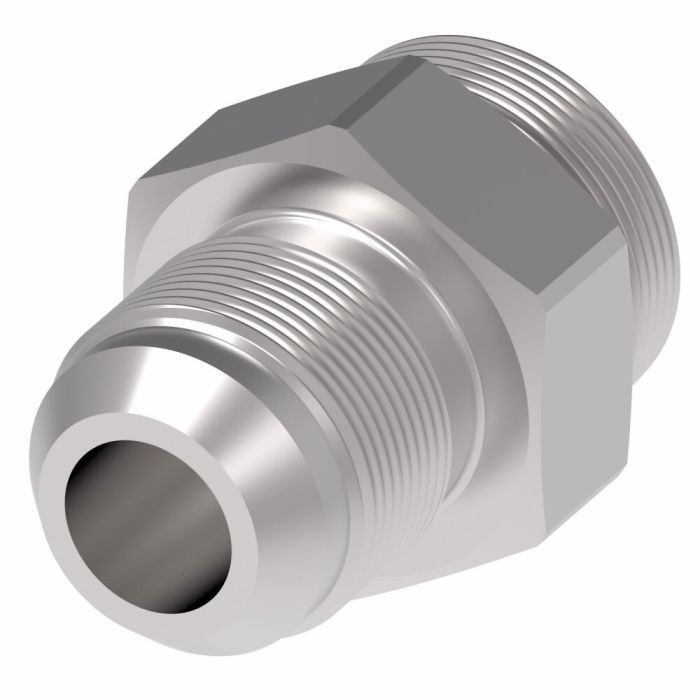

DANFOSS / EATON STEEL ADPT FOR 5400

Description & Features

Designed for demanding industrial environments, the Danfoss / Eaton Steel Adpt for 5400 is a straight adapter connecting SAE 37 Male Flare to SAE Male ends, with end sizes of 0.75" and 0.875" respectively. Constructed from carbon steel with Dura-Kote plating, it offers reliable corrosion resistance suited to harsh conditions.

Rated for operating pressures above SAE standards, this adapter is well-suited for marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling applications. A minimum working temperature of -40°F extends its usability across a wide range of thermal conditions.

Part of the Aeroquip 202220 Series, it is available in hundreds of styles, providing flexibility across a broad range of hydraulic system configurations. The unit weighs 0.11 lb and is sold individually.

SKU: 202220-8-8S

Supplier Part Number (MPN): 202220-8-8S

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Style Manual	Connection Type Male JIC, MPT	Connection Type 1 Male SAE 37 deg JIC	Connection Type 2 Male Threaded	Dimension Standards SAE J514	Finish Dura-Kote™	Fitting Type Adapter	Hex Size 1 x 1 in	Latch Type Screw-to-Connect	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -40 to 250 deg F	Series 202220 Series	Thread Size 7/8-14	Tube OD 1/2 in	Valve Type 2-Way

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
202220-4-4S	1/4 in	1/4 in	1/2-20
202220-6-4S	3/8 in	1/4 in	1/2-20
202220-6-8S	1/2 in	3/8 in	7/8-14
202220-10-12S	5/8 in	3/4 in
202220-12-12S	3/4 in	3/4 in
202220-16-16S	1 in	1 in
