DANFOSS / EATON #4 MP X #5 MJIC 45*

Description & Features

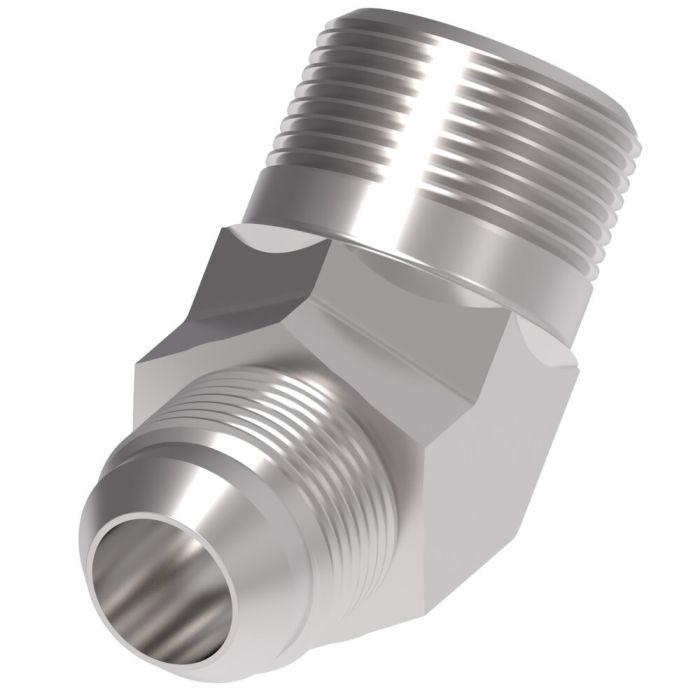

Designed for demanding industrial environments, this carbon steel 45-degree elbow adapter connects a #4 Male NPTF thread to a #5 Male SAE 37° (JIC) flare, making it well-suited for fluid routing applications where angular transitions between different thread standards are required. The Danfoss / Eaton 2023-4-5S is rated to perform across a broad temperature range starting at -65°F, supporting reliable service in harsh or variable conditions.

Finished with Dura-Kote plating for corrosion resistance, this fitting meets SAE 070302 certification and is engineered to exceed standard SAE pressure thresholds. Approved applications include marine and military equipment, chemical processing, pulp and paper, food and beverage processing, and off-shore drilling, reflecting its suitability for both high-demand and regulated-industry use. As part of the Aeroquip product family, it belongs to a broad lineup offering extensive configuration flexibility across connection styles and sizes.

SKU: 2023-4-5S

Supplier Part Number (MPN): 2023-4-5S

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 5/16 in	Connection Size 2 1/4 in	Connection Type Male Flared, MNPT	Connection Type 1 Male NPTF	Connection Type 2 Male 37 deg Flare	Dimension Standards SAE 070302/J514	Drop Dimensions 0.82 in	Finish Dura-Kote™	Fitting Type 45 deg Elbow	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -65	Series 2023 Series	Thread Size 1/2-20 x 1/4-18

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
2023-2-6S Steel Male NPT To SAE 45 deg Elbow	3/8 in	1/8 in	9/16-18 x 1/8-27
2023-12-12S Steel Male NPT To SAE 45 deg Elbow	3/4 in	3/4 in	1-1/16-12 x 3/4-14
2023-8-6S Steel Male NPT To SAE 45 deg Elbow	3/8 in	1/2 in	1/2-14 x 9/16-18
2023-2-3S Steel Male NPT To SAE 45 deg Elbow	1/8 in	3/16 in	3/8-24 x 1/8-27
2023-6-4S Steel Male NPT To SAE 45 deg Elbow	1/4 in	3/8 in	7/16-20 x 3/8-18
2023-4-8S Steel Male NPT To SAE 45 deg Elbow	1/2 in	1/4 in	3/4-16, 1/4-18
2023-20-20S Steel Male NPT To SAE 45 deg Elbow	1-1/4 in	1-1/4 in	1-1/4-11-1/2, 1-5/8-12
2023-4-4S Steel Male NPT To SAE 45 deg Elbow	1/4 in	1/4 in	7/16-20, 1/4-18
2023-6-6S Steel Male NPT To SAE 45 deg Elbow	3/8 in	3/8 in	3/8-18, 9/16-18
2023-8-12S Steel Male NPT To SAE 45 deg Elbow	3/4 in	1/2 in	1-1/16-12 x 1/2-14
2023-6-10S Steel Male NPT To SAE 45 deg Elbow	5/8 in	3/8 in	7/8-14 x 3/8-18
2023-16-12S Steel Male NPT To SAE 45 deg Elbow	3/4 in	1 in	1-1/16-12 x 1-11-1/2
2023-32-32S Steel Male NPT To SAE 45 deg Elbow	2 in	2 in	2-1/2-12 x 2-11-1/2
2023-2-4S Steel Male NPT To SAE 45 deg Elbow	1/4 in	1/8 in	1/8-27, 7/16-20
2023-8-8S Steel Male NPT To SAE 45 deg Elbow	1/2 in	1/2 in	3/4-16 x 1/2-14
2023-6-8S Steel Male NPT To SAE 45 deg Elbow	1/2 in	3/8 in	3/4-16 x 3/8-18
2023-4-6S Steel Male NPT To SAE 45 deg Elbow	3/8 in	1/4 in	1/4-18 x 9/16-18
2023-16-16S Steel Male NPT To SAE 45 deg Elbow	1 in	1 in	1-5/16-12 x 1-11-1/2 x 1-5/16-12
2023-8-10S Steel Male NPT To SAE 45 deg Elbow	5/8 in	1/2 in	1/2-14 x 7/8-14
2023-12-16S Steel Male NPT To SAE 45 deg Elbow	1 in	3/4 in	3/4-14, 1-5/16-12
2023-12-8S Steel Male NPT To SAE 45 deg Elbow	1/2 in	3/4 in	3/4-16 x 3/4-14
2023-24-24S Steel Male NPT To SAE 45 deg Elbow	1-1/2 in	1-1/2 in	1-7/8-12, 1-1/2-11-1/2
2023-2-5S	5/16 in	1/8 in	1/2-20 x 1/8-27
2023-12-10S	5/8 in	3/4 in	3/4-14, 7/8-14
2023-16-20S	1-1/4 in	1 in	1-5/8-12 x 1-11-1/2
