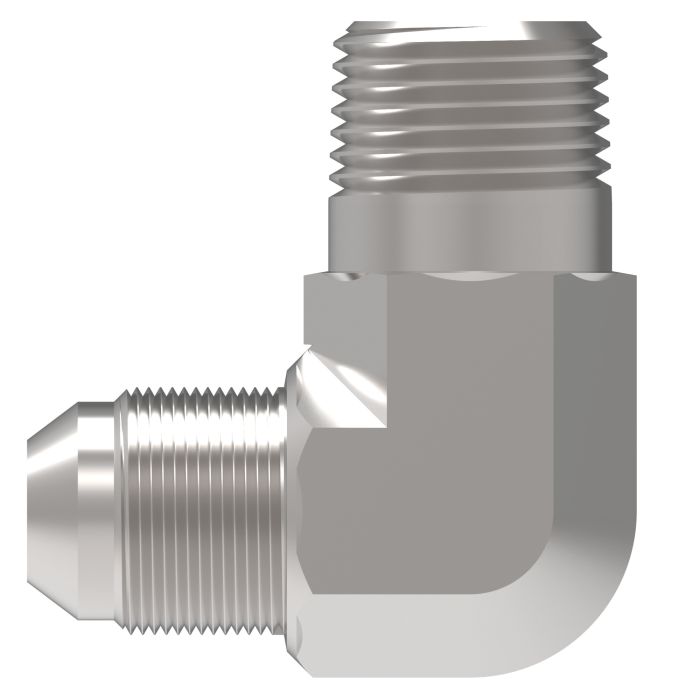

DANFOSS / EATON #24 MP X #32 MJ 90*

This carbon steel 90° elbow adapter connects a #24 Male NPTF thread to a #32 Male SAE 37° flare, making it well suited for routing hydraulic lines where a directional change is required at the fitting level. The Danfoss / Eaton #24 MP x #32 MJ 90° is part of the Aeroquip line and carries SAE 071602 certification, supporting use in demanding environments including marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling applications.

Dura-Kote plating provides corrosion resistance suited to harsh or moisture-prone conditions, while the design is rated for operating pressures above standard SAE thresholds. With a drop dimension of 3.06 inches and a width of 2.56 inches, the adapter fits within compact assemblies where space and angle constraints matter. Minimum working temperature is rated to -65°F, extending its usability across a broad range of operating conditions.

SKU: 2024-24-32S

Supplier Part Number (MPN): 2024-24-32S

Alternate Part Numbers: C1AW18
