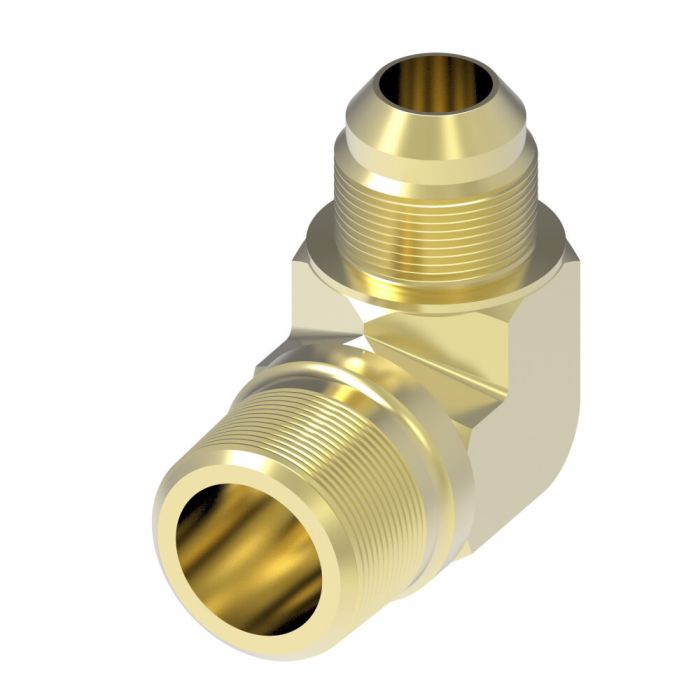

A brass 90° elbow adapter with NPTF male and SAE 37° male ends, this Danfoss / Eaton Adapter from the 2024 Series is built for demanding industrial environments across marine, military, chemical processing, offshore drilling, and food and beverage applications. The 90° elbow configuration supports directional routing in tight installations where straight fittings are not practical.
Constructed from brass and finished with Dura-Kote plating, the adapter offers strong resistance to corrosion in harsh or chemically aggressive settings. It is rated to perform at temperatures as low as -65°F and is designed to exceed standard SAE pressure requirements. The fitting is certified to SAE 071602 and is offered across a broad range of styles, providing connection flexibility across diverse hydraulic system configurations.
SKU: 2024-32-24B
Supplier Part Number (MPN): 2024-32-24B
|
Alternate Part Numbers
MINO-00015X04281
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Certifications
SAE 071602
|
Drop Dimension
3.00
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
1.31
|
End Size 2
2
|
End Type 1
NPTF
|
End Type 2
SAE 37
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/SAE 37° Male 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Product Material
Brass
|
Product Width
2.50
|
Sub Brand
None
|
Supplier Part Number
2024-32-24B
|
Product Weight
0.01 lbs
|
