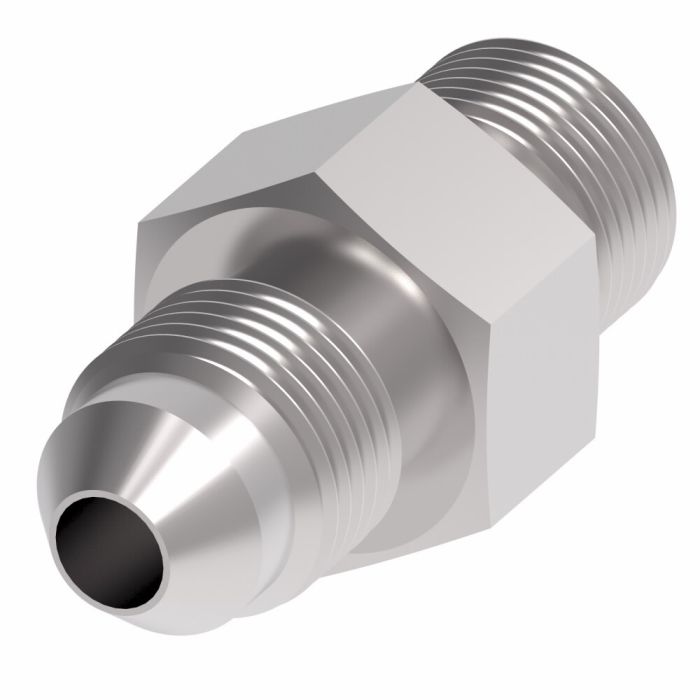

Designed for demanding industrial and marine environments, the Danfoss / Eaton ADP 8M ORB 12M JIC is a straight adapter connecting an 8M SAE O-ring Boss port to a 12M JIC 37-degree flare fitting. Constructed from carbon steel with Dura-Kote plating, it provides reliable corrosion resistance across a wide range of service conditions, including offshore drilling, chemical processing, pulp and paper, and food and beverage applications.
Rated to SAE standard 070120 and capable of operating above standard SAE pressure thresholds, this adapter suits hydraulic circuits where connection integrity under elevated pressure is a priority. The minimum working temperature of -40°F makes it suitable for cold-climate and marine/military use. Both ends carry male thread configurations, and the carbon steel body offers the structural consistency needed for high-cycle hydraulic service. The Aeroquip-branded 202701 Series offers hundreds of configuration styles, giving system designers flexibility across varied port and fitting requirements.
SKU: 202701-8-12S
Supplier Part Number (MPN): 202701-8-12S
|
Alternate Part Numbers
MINO-00015X04313
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Certifications
SAE 070120
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.75
|
End Type 1
SAE 37
|
End Type 2
SAE 37
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Straight Adapters
|
Item Type
Straight Adapter
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.13
|
Sub Brand
None
|
Supplier Part Number
202701-8-12S
|
Product Weight
0.27 lbs
|
