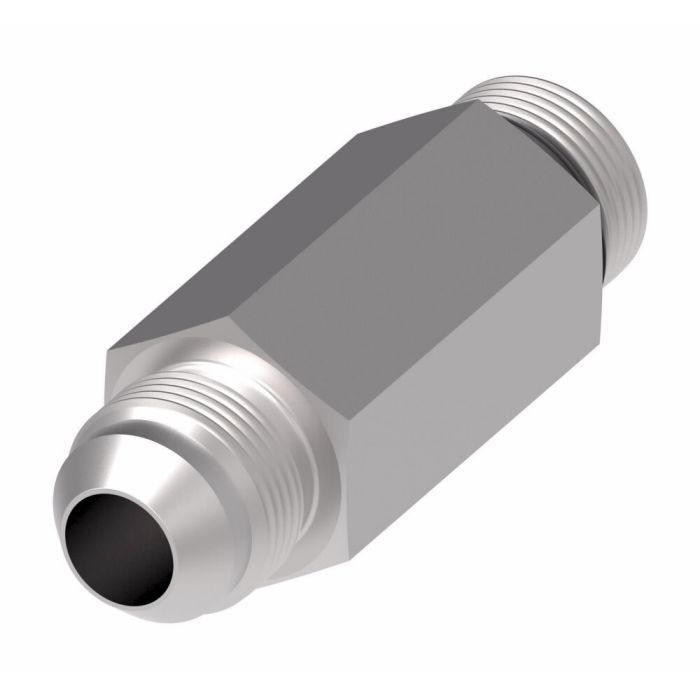

A straight adapter configuration in carbon steel, the Danfoss / Eaton ADP 10 M ORB 10 M JIC connects a 0.875-inch SAE O-ring Boss male port to a 0.875-inch SAE 37° (JIC) male end in a single inline fitting. Dura-Kote plating provides corrosion resistance suited to demanding service environments, and the design is rated to meet and exceed SAE pressure standards.
Certified to SAE, ASA, and ASME standards, this adapter is well-suited for marine, military, chemical processing, food and beverage, pulp and paper, and offshore drilling applications. A minimum working temperature rating of -40° supports cold-climate and refrigerated process environments. Part of the Aeroquip product family, it is available in hundreds of styles, giving system designers broad configuration flexibility across hydraulic circuit layouts.
SKU: 202713-10-10S
Supplier Part Number (MPN): 202713-10-10S
Alternate Part Numbers: C1JD31
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1JD31, Alternate Part Number MINO-00925X08976
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Certifications
SAE|ASA|ASME
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.88
End Size 2
0.88
End Type 1
SAE ORB
End Type 2
SAE 37
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
ICC
Straight Adapters
Item Type
SAE ORB Male / SAE 37° Male Straight Adapter
Language
English
Minimum Working Temperature
-40
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1
Sub Brand
None
Supplier Part Number
202713-10-10S
Product Weight
0.20 lbs
Product Questions & Answers (1)
Question by: Dale W on Apr 25, 2025, 1:41 PM
Just want to double-check, this is carbon steel, right?
Answer by: Customer Support on Apr 27, 2025, 6:45 AM
