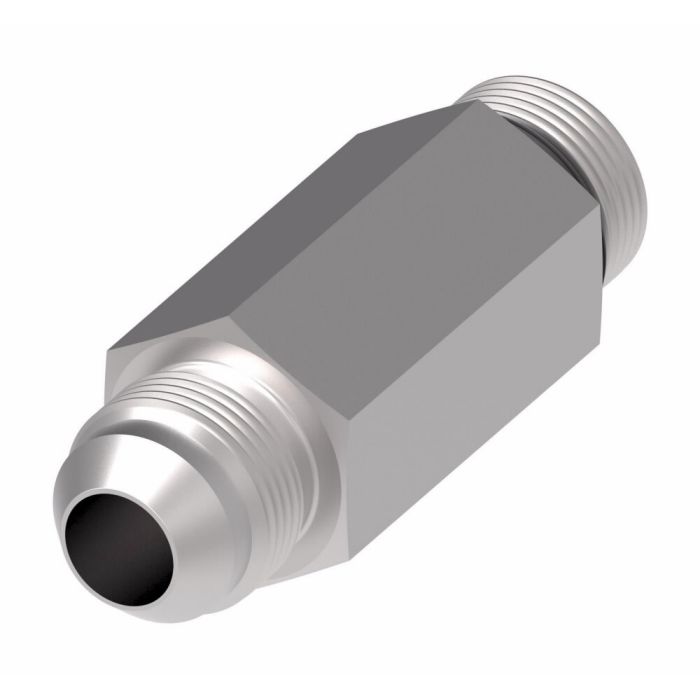

DANFOSS / EATON ADP 16 M ORB 16 M JIC WIN

Description & Features

Designed for hydraulic, instrumentation, and chemical processing systems, this carbon steel straight adapter connects a male SAE O-Ring Boss port to a male SAE 37° flare fitting in a single inline configuration. The Danfoss / Eaton ADP 16 M ORB 16 M JIC Win carries a -40°F minimum working temperature rating and meets ASME, ASA, and SAE certification standards, making it appropriate for demanding industrial fluid system applications.

Eaton Aeroquip's Dura-Kote plating provides corrosion resistance suited to harsh service environments. Operating pressure capability exceeds standard SAE requirements, and the adapter is part of a broad family of styles within the Aeroquip product line, offering configuration flexibility across a wide range of system designs.

SKU: 202713-16-16S

Supplier Part Number (MPN): 202713-16-16S

Alternate Part Numbers: C1ES73, MI-00319233, MINO-00015F65351

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Male JIC, Male SAE ORB	Connection Type 1 Male SAE ORB	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE 070122/J1926/J514	Dimensions 3.98 in L	Finish Dura-Kote™	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 202713 Series	Thread Size 1-5/16-12

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Dimensions
202713-6-6S Steel Male ORB To JIC Long Adapter	3/8 in	3/8 in	9/16-18	2.31 in L
202713-8-8S Steel Male ORB To JIC Long Adapter	1/2 in	1/2 in	3/4-16	2.7 in L
202713-4-4S Steel Male ORB To JIC Long Adapter	1/4 in	1/4 in	7/16-20	2.08 in L
202713-12-12S Steel Male ORB To JIC Long Adapter	3/4 in	3/4 in	1-1/16-12	3.61 in L
202713-10-10S	5/8 in	5/8 in	7/8-14	3.04 in L

Product Questions & Answers (3)

Question by: Wade B on Jun 17, 2025, 10:15 AM

got a port with 1-5/16-12 ORB on one side and need to go over to a 37 degree JIC male, is that what this adapter is?

Answer by: Customer Support on Jun 18, 2025, 1:01 PM

For connecting those two common hydraulic thread styles, this part is a straight adapter with a male SAE ORB end on one side and a male SAE 37 degree (JIC) end on the other.

Question by: Troy B on Aug 23, 2025, 7:11 AM

got a hose end that’s 16 male ORB on one side and 16 male JIC on the other. is this the straight adapter for that setup?

Answer by: Customer Support on Aug 24, 2025, 8:35 AM

For tying those two thread types together in a straight run, this adapter matches SAE O-ring Boss male on one end and SAE 37 degree flare (JIC) male on the other, in size 16 to size 16.

Question by: Lynn S on Jun 14, 2025, 10:16 AM

does this adapter go from ORB to JIC, or is it the other way around, trying to figure out which end hooks up where before i order

Answer by: Customer Support on Jun 15, 2025, 5:14 PM

Both ends are male. One side is SAE O-ring Boss (ORB) and the other is SAE 37 degree flare, which is your standard JIC connection. So you're getting a straight male-to-male adapter that bridges those two fitting types without any inline direction to worry about. Just match each end to its corresponding port or hose fitting and you're set.
