Danfoss / Eaton ADP TEE MP FP MJIC

Description & Features

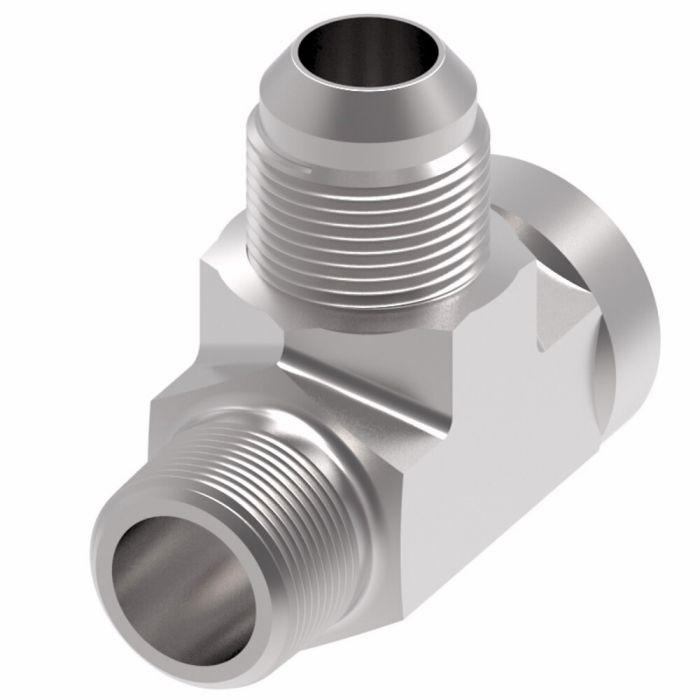

A three-port carbon steel tee adapter designed for hydraulic, instrumentation, and chemical processing systems, the Danfoss / Eaton ADP Tee MP FP MJIC connects a 1/2 in. NPTF male port and a 7/8 in. SAE 37° male (MJIC) port to a 1/2 in. NPTF female port in a single compact fitting. This configuration supports branched line connections where mixed thread standards are required within the same assembly.

Part of the Aeroquip 203301 Series, this adapter is manufactured from carbon steel with Dura-Kote plating for reliable corrosion resistance across a wide service range, with a minimum working temperature rated to -65°F. The series is engineered to meet and exceed SAE pressure standards, offering design flexibility across hundreds of available configurations. Typical service environments include industrial hydraulic circuits and chemical processing lines where dependable multi-port connections are required.

SKU: 203301-8-10S

Supplier Part Number (MPN): 203301-8-10S

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1/2 in	Connection Size 2 5/8 in	Connection Size 3 5/8 in	Connection Type FNPT, JIC, MNPT	Connection Type 1 Male NPTF	Connection Type 2 Female NPTF	Connection Type 3 SAE 37 deg JIC Flare	Dimension Standards SAE J514	Finish Dura-Kote™	Fitting Type Tee	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -65 to 400 deg F	Segment Code C	Series 203301 Series	Thread Size 1/2-14 x 7/8-14

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size
203301-2-4S	1/4 in	1/8 in		1/8-27, 7/16-20
203301-4-6S	3/8 in	1/4 in		1/4-18 x 9/16-18
203301-6-8S	3/8 in	1/2 in	1/2 in	3/4-16
203301-12-12S	3/4 in	3/4 in	3/4 in	1-1/16-12 x 3/4-14
203301-16-16S	1 in	1 in		1-5/16-12 x 1-11-1/2 x 1-5/16-12
