DANFOSS / EATON ADAPTERS

Description & Features

Eaton Aeroquip adapters are suitable for a variety of demanding applications, including marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling.

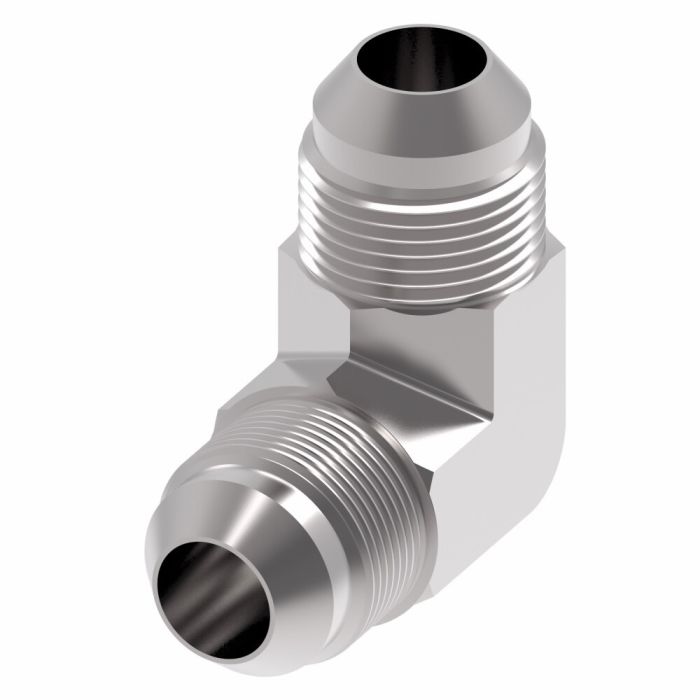

These DANFOSS / EATON ADAPTERS are constructed of carbon steel with Dura-Kote plating for enhanced corrosion resistance. Design flexibility is assured with hundreds of styles to choose from. These SAE 37° male/SAE 37° male 90° elbow adapters meet SAE 070201 standards and offer higher operating pressures above SAE standards.

This elbow adapter features a 0.75 male end size 1 and a 0.5625 male end size 2. It is designed to perform in temperatures as low as -65 degrees.

SKU: 2039-8-6S

Supplier Part Number (MPN): 2039-8-6S

Alternate Part Numbers: C1DV62, MI-00313577, MINO-00015F62200

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1/2 in	Connection Size 2 3/8 in	Connection Type Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Male SAE 37 deg JIC Flare	Dimension Standards SAE 070201/J514	Drop Dimensions 1.14 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -65	Series 2039 Series	Thread Size 3/4-16, 9/16-16	Tube OD 3/8 in

Similar Products

Model Number	Connection Size 1	Connection Type 1	Connection Size 2	Thread Size
2039-6-6S Steel Male JIC 90 deg Elbow	3/8 in	Male SAE 37 deg JIC Flare	3/8 in	9/16-18
2039-12-12S Steel Male JIC 90 deg Elbow	3/4 in	Male SAE 37 deg JIC Flare	3/4 in	1-1/16-12
2039-10-10S Steel Male JIC 90 deg Elbow	5/8 in	Male SAE 37 deg JIC Flare	5/8 in	7/8-14
2039-20-20S Steel Male JIC 90 deg Elbow	1-1/4 in	Male SAE 37 deg JIC Flare	1-1/4 in	1-5/8-12
2039-4-4S Steel Male JIC 90 deg Elbow	1/4 in	Male SAE 37 deg JIC Flare	1/4 in	7/16-20
2039-16-16S Steel Male JIC 90 deg Elbow	1 in	Male SAE 37 deg JIC Flare	1 in	1-5/16-12
2039-8-8S Steel Male JIC 90 deg Elbow	1/2 in	Male SAE 37 deg JIC Flare	1/2 in	3/4-16
2039-5-5S	5/16 in	Male SAE 37 deg JIC Flare	5/16 in	1/2-20
2039-16-12S	1 in	Male 37 deg JIC Flare	3/4 in	1-5/16-12 x 1-1/16-12
2039-24-24S	1-1/2 in	Male SAE 37 deg JIC Flare	1-1/2 in	1-7/8-12
2039-32-32S	2 in	Male SAE 37 deg JIC Flare	2 in	2-1/2-12

Product Questions & Answers (2)

Question by: Debbie F on Feb 12, 2026, 6:57 AM

What kind of stuff is this Eaton adapter good for? I work in a paper mill, and things get pretty corrosive.

Answer by: Customer Support on Feb 13, 2026, 7:47 AM

Designed for robust performance, these adapters are often found in chemical processing, pulp and paper, and even marine/military applications where corrosion resistance is key. The Dura-Kote plating helps a lot.

Question by: Roger R on Dec 11, 2025, 10:16 AM

Both ends on this are SAE 37 male fittings, right? Trying to figure out if it'll work between two female ports on a hydraulic line I'm redoing.

Answer by: Customer Support on Dec 13, 2025, 8:34 AM

Correct on both counts. The 2039-8-6S has SAE 37 degree male ends on each side, so it bridges two female SAE 37 ports. One end is 3/4 inch and the other steps down to 9/16 inch, so keep that size difference in mind when you're planning the connection. The 90 degree elbow geometry also gives you some routing flexibility if space is tight around the fitting area.
