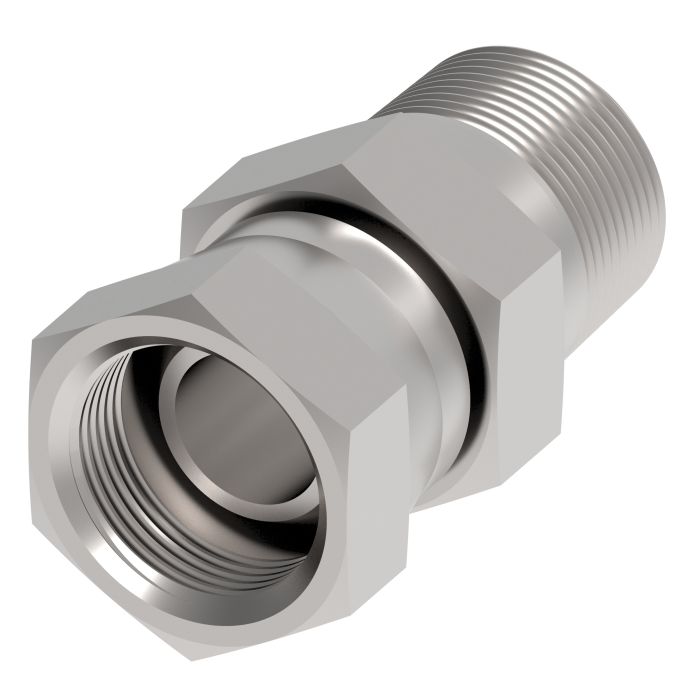

Designed for demanding industrial environments, this carbon steel straight adapter connects a #20 Female Pipe Swivel (NPSM) to a #24 Male Pipe (NPTF) thread, making it well suited for hydraulic and fluid transfer systems across marine, military, offshore drilling, chemical processing, food and beverage, and pulp and paper applications. The DANFOSS / EATON #20 FP Swivel x #24 MP is part of the Aeroquip 2045 Series, manufactured under Danfoss Power Solutions.
Dura-Kote plating provides corrosion resistance suited to harsh operating conditions, while the adapter supports working pressures above standard SAE thresholds. A minimum working temperature rating of -40° extends its usability in cold-climate and cryogenic-adjacent service conditions. With a hex size of 2.125 inches, installation is straightforward with standard tooling. SAE 140130 certification confirms compliance with recognized industry standards, and the broad range of available styles in the 2045 Series supports flexible system configurations.
SKU: 2045-20-24S
Supplier Part Number (MPN): 2045-20-24S
|
Alternate Part Numbers
MINO-00015X04401
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Certifications
SAE 140130
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Danfoss Power Solutions
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Type 1
NPSM
|
End Type 2
NPTF
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
2.13
|
ICC
Straight Adapters
|
Item Type
Straight Adapter
|
Language
English
|
Minimum Working Temperature
-40
|
Product Material
Carbon steel
|
Product Width
0.69
|
Sub Brand
Aeroquip
|
Supplier Part Number
2045-20-24S
|
Product Weight
1.07 lbs
|
