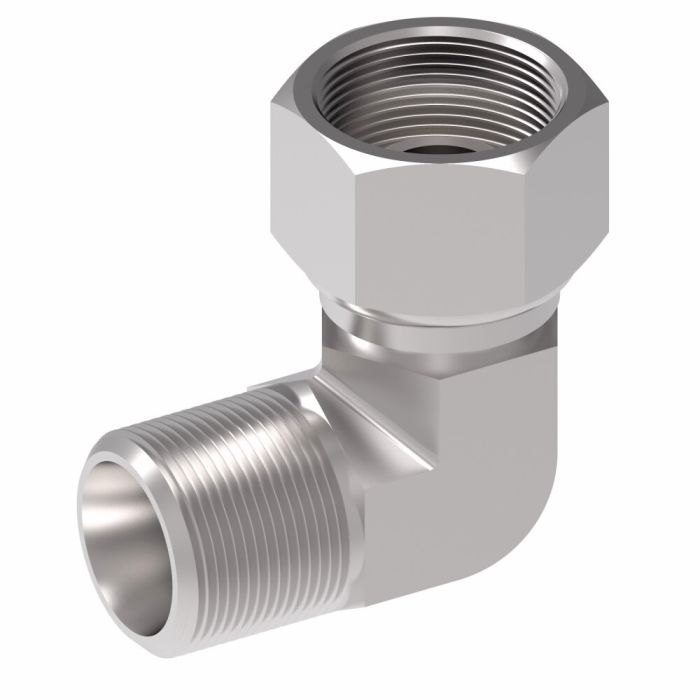

Designed for demanding industrial environments, this carbon steel 90° elbow adapter connects a 1-1/2 in. NPSM female swivel end to a 1-1/2 in. NPTF male thread, making it well suited for hydraulic line routing where directional changes are required. The Internal Pipe Swivel is part of the Eaton Aeroquip 2047 Series and meets SAE 140230 certification, supporting operating pressures above standard SAE requirements.
Dura-Kote plating provides corrosion resistance across a working temperature range starting at -65°F, making this fitting appropriate for marine, military, offshore drilling, chemical processing, food and beverage processing, and pulp and paper applications. The 2047 Series offers extensive style variety, giving engineers flexibility when specifying fittings for complex assemblies.
SKU: 2047-24-24S
Supplier Part Number (MPN): 2047-24-24S
Alternate Part Numbers: C1AY90, MI-00321461, MINO-00015F66082
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1AY90, Alternate Part Number MI-00321461, Alternate Part Number MINO-00015F66082, Alternate Part Number MINO-00925X09214
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Certifications
SAE 140230
Drop Dimension
2.84
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Type 1
NPSM
End Type 2
NPTF
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
Hex Size 2
1.96
ICC
Elbow Adapters
Item Type
NPSM Female/NPTF Male 90° Elbow Adapter
Language
English
Minimum Working Temperature
-65
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.97
Sub Brand
None
Supplier Part Number
2047-24-24S
Product Weight
2.10 lbs
Product Questions & Answers (2)
Question by: Todd R on Aug 19, 2025, 4:40 PM
Will this here swivel adapter hold up if I'm running some pretty corrosive stuff through it?
Answer by: Customer Support on Aug 21, 2025, 6:12 AM
Dura-Kote plating gives this internal pipe swivel superior corrosion resistance, which makes it suitable for chemical processing applications.
Question by: Donna O on Oct 8, 2025, 6:41 PM
got a swivel elbow that goes from 1 1/2 female pipe to 1 1/2 male pipe, is this the right style?
Answer by: Customer Support on Oct 10, 2025, 12:55 PM
Function-wise, yes. It’s a 90° elbow adapter with an NPSM female internal pipe swivel on one end and an NPTF male external pipe thread on the other, both in the 1 1/2 size for this part number.
