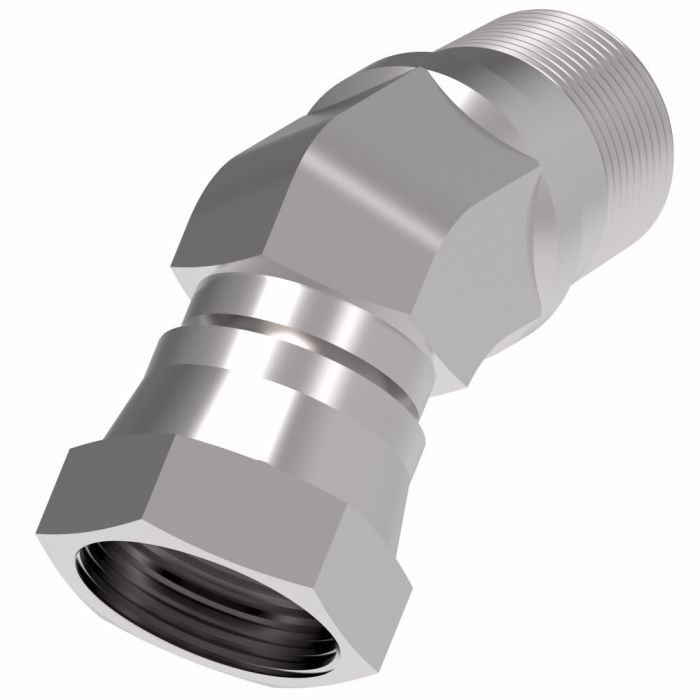

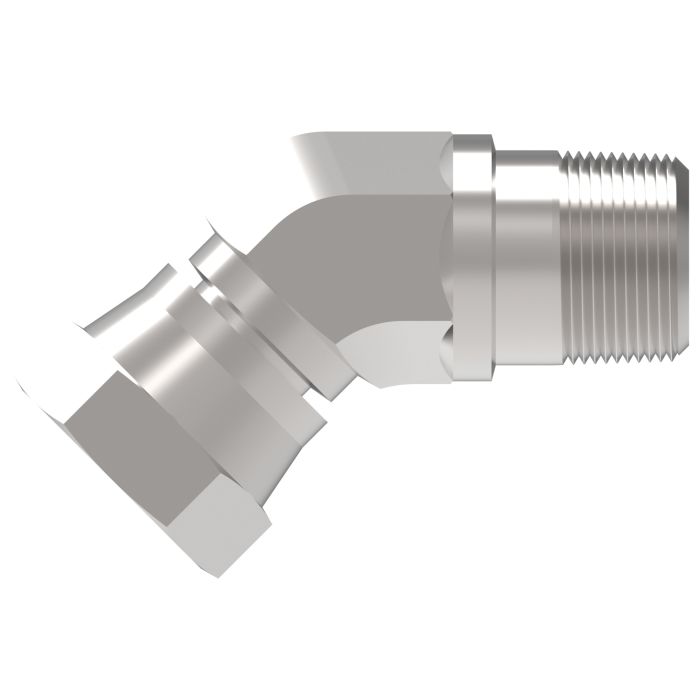

A carbon steel 45-degree elbow adapter connecting a #24 Female Plain Swivel (Npsm) to a #24 Male Pipe (Nptf) thread, the Danfoss / Eaton 2049-24-24S is built for demanding industrial environments including marine, military, chemical processing, offshore drilling, and food and beverage applications. The angled configuration supports directional routing flexibility in tight installations where straight adapters cannot be used.
Finished with Dura-Kote plating for superior corrosion resistance, this adapter is rated for operating pressures above standard SAE requirements and carries SAE 140330 certification. The swivel end allows rotational positioning during installation, reducing stress on connected lines. With a minimum working temperature of -65°F and a package weight of 0.8 lb, it suits both extreme-environment and standard industrial fluid system configurations.
SKU: 2049-24-24S
Supplier Part Number (MPN): 2049-24-24S
|
Alternate Part Numbers
MINO-00925X09233
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Certifications
SAE 140330
|
Drop Dimension
2.00
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Type 1
NPSM
|
End Type 2
NPTF
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
2.12
|
ICC
Elbow Adapters
|
Item Type
NPSM Female/NPTF Male 45°° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
2.12
|
Sub Brand
None
|
Supplier Part Number
2049-24-24S
|
Product Weight
1.46 lbs
|
