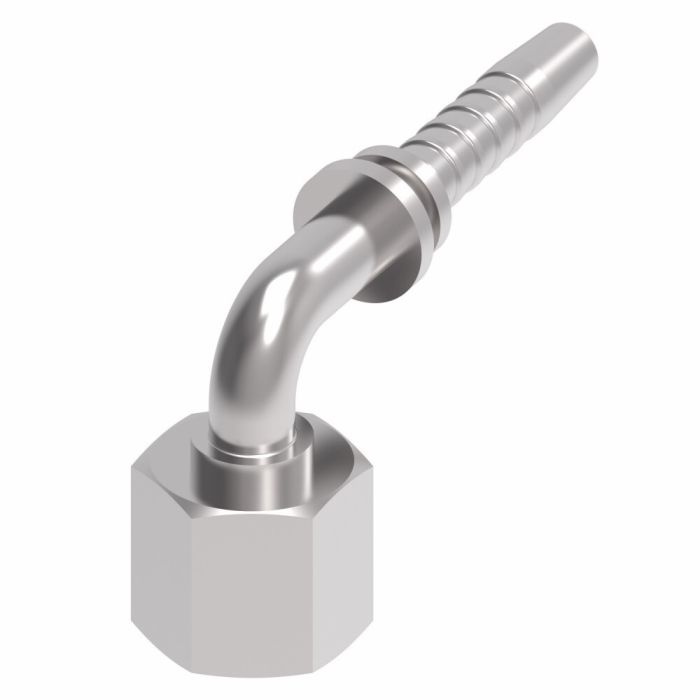

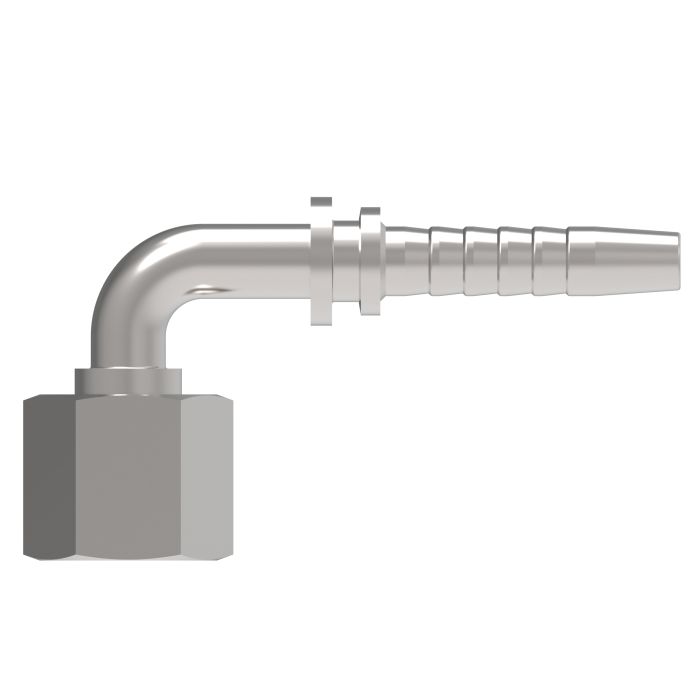

EW DKO FemaleSwivel Light Duty

Ask A Question

Description & Features

Experience superior performance and reliability with the EW DKO FemaleSwivel Light Duty fitting, a crucial component for high-pressure hydraulic systems across industrial sectors such as mobile equipment, mining, shipyards, and wind power. Crafted from durable carbon steel, this fitting features a Metric female end designed to ensure a secure connection with various hoses, lines, or tubes.

Engineered for longevity, the fitting boasts Dura-Kote plating, providing exceptional corrosion resistance and extending hose assembly life. Its innovative design enhances system uptime, making it an ideal choice for applications requiring consistent and dependable performance. The fitting's drop dimension is 5.9100, with a hex size of 1.6 and a hose dash size of -16, ensuring compatibility with a range of industrial systems.

SKU: 20491-36-16WZF

Supplier Part Number (MPN): 20491-36-16WZ

Alternate Part Numbers: C1MY15, MI-08754641, MINO-00015X74005

Specifications

Brand
Winner by Danfoss
a Dimensions
4.65 in
Color
Silver
Compatible Hose ID
1 in
Connection Size 1
36 mm
Connection Size 2
1 in
Connection Type
Female DKOL Swivel, Hose
Connection Type 1
Hose
Connection Type 2
24 deg Female DKOL Swivel
Construction Style
Crimp
Cut-Off Factor
2.8 in
Dimensions
5.45 in L x 1.6 in W x 7.5 in H
Drop Dimensions
2.7 in
End Gender 1
Female
End Size 1
25
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
EC115, EC215, EC110, EC210, EC118, EC082, WH004, WH005, WH006, WH007, EC426 and EC330 Series Hoses
Hex Size
1.614 in
Hose Dash Size
16
Inside Diameter
0.83 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
20491 Series
Thread Sealant
Without Thread Sealant
Thread Size
M36x2
Tube Outside Diameter 1
1.102 in

Product Questions & Answers (1)

Question by: Chad P on Jun 11, 2025, 9:30 AM
Reckon this would hold up okay on some heavy equipment that runs pretty much all day?
Answer by: Customer Support on Jun 13, 2025, 6:08 AM
Application-wise, these fittings are indeed used in the high-pressure hydraulic systems you find on mobile and mining equipment, so it should be suitable for heavy duty, near-continuous use.
