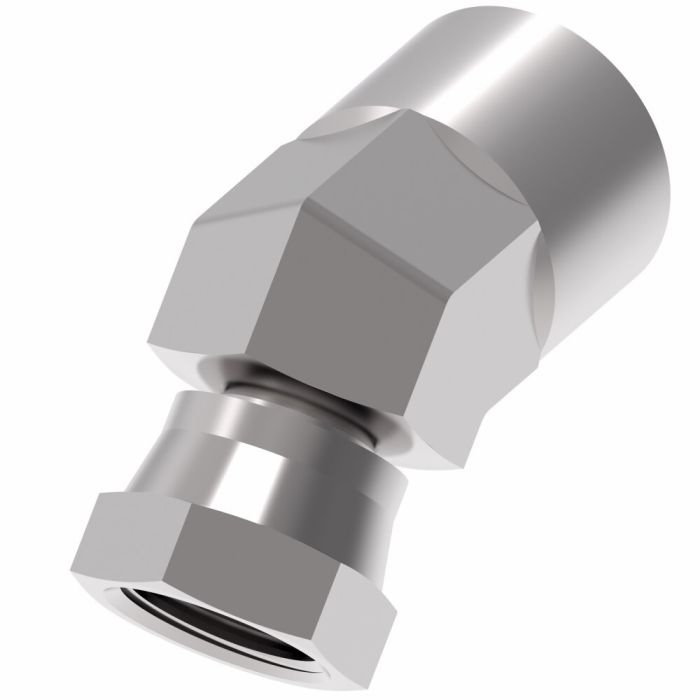

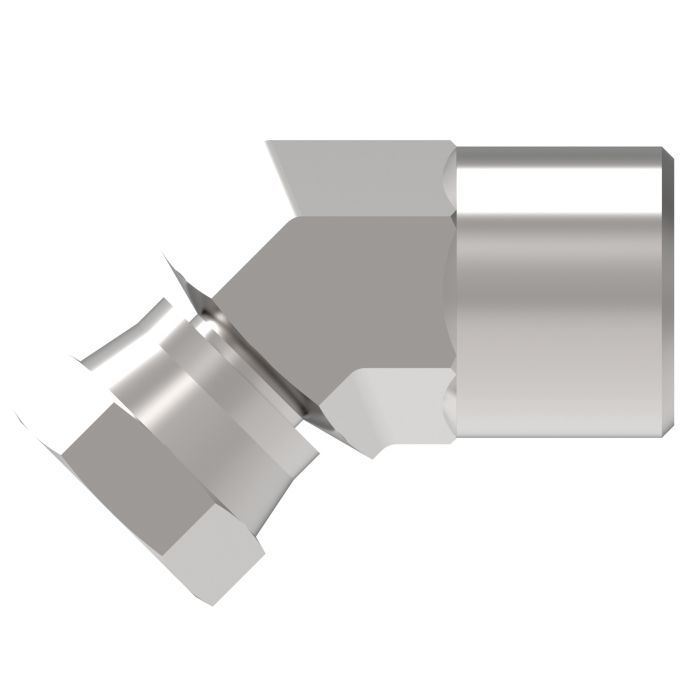

Designed for demanding industrial environments, this carbon steel 45° elbow adapter connects a #6 NPSM swivel female end to a #6 NPTF rigid female end, providing reliable directional routing in tight or angled installations. The Danfoss / Eaton #6 FP (Swivel) x #6 FP (Rigid) 45° adapter belongs to the 2050 Series and carries SAE 140331 certification, confirming performance above standard SAE pressure thresholds.
Dura-Kote plating provides strong corrosion resistance, making this adapter well suited for marine, military, chemical processing, pulp and paper, food and beverage, and offshore drilling applications. The swivel end simplifies assembly by allowing rotation during installation without disturbing the mating connection. With a minimum working temperature of -65°F and a 0.875-inch hex profile, it fits within the broad range of Eaton's adapter lineup, which spans hundreds of configurations for design flexibility across varied hydraulic system requirements.
SKU: 2050-6-6S
Supplier Part Number (MPN): 2050-6-6S
|
Alternate Part Numbers
MINO-00925X09243
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Certifications
SAE 140331
|
Drop Dimension
1.18
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Danfoss Power Solutions
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 1
0.38
|
End Size 2
0.38
|
End Type 1
NPSM
|
End Type 2
NPTF
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
0.87
|
ICC
Elbow Adapters
|
Item Type
NPSM Female/NPTF Female 45°° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
0.87
|
Sub Brand
None
|
Supplier Part Number
2050-6-6S
|
Product Weight
0.28 lbs
|
