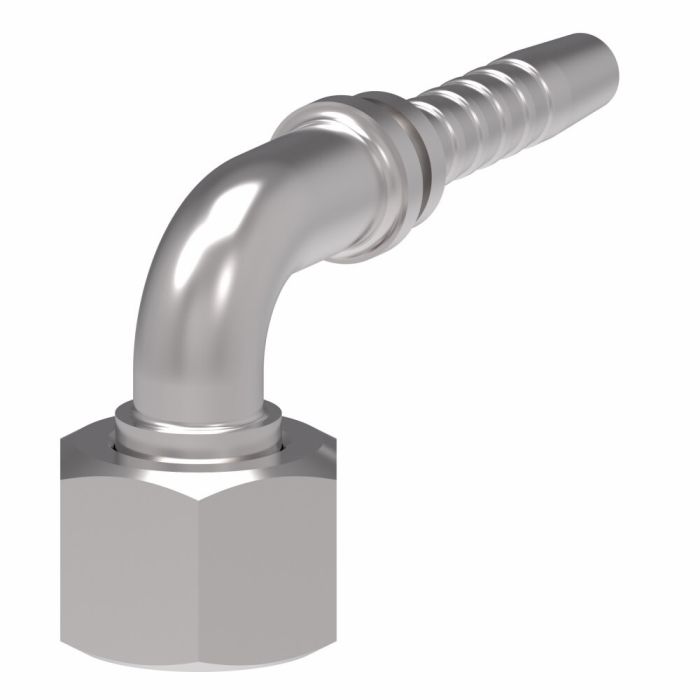

main product photo

EW DKO FemaleSwivel Heavy Duty (DIN 3865)

Ask A Question

Description & Features

Designed for demanding environments, the EW DKO FemaleSwivel Heavy Duty (DIN 3865) fitting excels in high-pressure, high-reliability hydraulics systems. Made from robust carbon steel, it features Dura-Kote plating to provide superior corrosion resistance, ensuring a long-lasting performance in mobile, mining, shipyard, and wind power applications. This fitting's innovative design is engineered to maximize uptime and extend hose assembly life, making it an ideal choice for critical industrial markets.

With a metric female 24-degree cone O-ring configuration, this fitting offers a seamless connection for lines, hoses, and tubes. The 90-degree elbow design and dimensions such as a drop dimension of 1.2200 and a hex size of 0.748 ensure versatility and ease of installation. This product is part of the Winner brand by Danfoss/Eaton, known for its reliability and engineering excellence.

SKU: 20591-16-04TZF

Supplier Part Number (MPN): 20591-16-04TZ

Alternate Part Numbers: C1MY24

Specifications

Brand
Winner by Danfoss
Color
Silver
Connection Size 1
1 in
Connection Size 2
1/4 in
Connection Type
Crimp, Female DKOS Swivel
Connection Type 1
Female DKOS Swivel
Connection Type 2
Crimp
Cut-Off Factor
1.18 in
Dimensions
2.283 in L
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
EC115, EC215, EC110, EC210, EC118, EC082, WH004, WH005, WH006, WH007, EC426 and EC330 Series Hoses
Hex Size
1.22 in
Hose Dash Size
04
Material
Steel
Material Construction
Carbon Steel
Series
20591 Series
Thread Size
M16x1.5

Product Questions & Answers (1)

Question by: Kent W on Jul 10, 2025, 6:25 AM
Will this fitting hold up if I use it on some heavy equipment?
Answer by: Customer Support on Jul 11, 2025, 10:03 AM
Application-wise, these fittings are built for high-pressure, high-reliability hydraulic systems. You'll find them used in mobile and mining equipment, plus shipyards, metal plants, and even wind power setups. They're made to take a beating.
