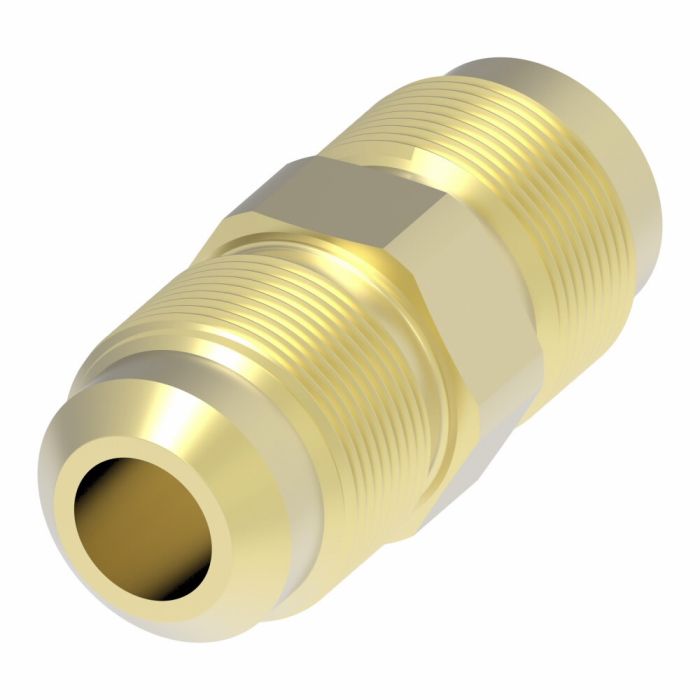

Constructed from brass and finished with Dura-Kote plating for strong corrosion resistance, this SAE 45° Male to SAE 45° Male straight adapter delivers reliable inline connections across demanding industrial environments. Both ends measure 3/4 in., making it a symmetrical union well suited for straight-line fluid line assemblies.
Part of the Eaton Aeroquip 2060 Series Danfoss / Eaton Adapters line, this fitting is rated for operating pressures above standard SAE requirements and carries a minimum working temperature of -40°F, characteristics that support use in marine, military, offshore drilling, chemical processing, food and beverage processing, and pulp and paper applications. The Aeroquip adapter range includes hundreds of available configurations, providing significant design flexibility across varied system layouts.
SKU: 2060-8-8B
Supplier Part Number (MPN): 2060-8-8B
|
Alternate Part Numbers
MINO-00015F68624
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 1
0.75
|
End Size 2
0.75
|
End Type 1
SAE 45
|
End Type 2
SAE 45
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Straight Adapters
|
Item Type
SAE 45° Male / SAE 45° Male Straight Adapter
|
Language
English
|
Minimum Working Temperature
-40
|
Product Material
Brass
|
Product Width
0.75
|
Sub Brand
Aeroquip
|
Supplier Part Number
2060-8-8B
|
Product Weight
0.13 lbs
|
