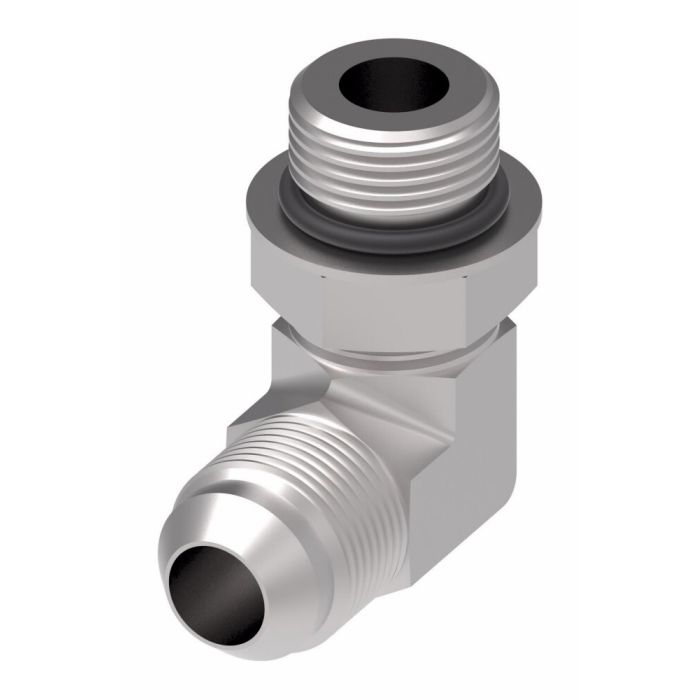

Designed for demanding industrial and marine environments, this carbon steel 90° elbow adapter connects a 20 SAE O-Ring Boss male port to a 24 SAE 37° flare male end. The Danfoss / Eaton Adpt 20 M Orb 24 Mjic Win belongs to Eaton Aeroquip's 2062 Series and is built to perform at operating pressures above standard SAE thresholds, making it well-suited for high-pressure hydraulic systems.
Dura-Kote plating provides corrosion resistance suited to harsh service conditions, including offshore drilling, marine and military applications, chemical processing, and food and beverage or pulp and paper facilities. The adapter meets SAE 070220 certification and is rated for temperatures as low as -65°F. With hundreds of available styles across the series, the 2062 line offers considerable configuration flexibility for varied hydraulic connection requirements.
SKU: 2062-20-24S
Supplier Part Number (MPN): 2062-20-24S
Alternate Part Numbers: C1AZ47, MI-00305241, MINO-00015F54160
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1AZ47, Alternate Part Number MI-00305241, Alternate Part Number MINO-00015F54160
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Certifications
SAE 070220
Drop Dimension
2.33
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Type 1
SAE ORB
End Type 2
SAE 37
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
Hex Size 2
1.97
ICC
Elbow Adapters
Item Type
SAE ORB Male/SAE 37° Male 90° Elbow Adapter
Language
English
Minimum Working Temperature
-65
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.97
Sub Brand
None
Supplier Part Number
2062-20-24S
Product Weight
2.15 lbs
Product Questions & Answers (3)
Question by: Dean H on Nov 27, 2025, 10:16 AM
does this fit up with a 90 degree elbow or is it already built that way
Answer by: Customer Support on Nov 28, 2025, 8:56 PM
Already built in. The 2062-20-24S comes configured as a 90 degree elbow adapter right out of the box, so there's no assembly needed on that end. One side is a 20-series SAE O-Ring Boss male port and the other terminates in a 24-series SAE 37 degree male JIC flare. You just need to confirm those thread sizes match your lines before ordering.
Question by: Earl R on Jun 23, 2025, 8:50 PM
What kinda applications is this elbow adapter good for?
Answer by: Customer Support on Jun 25, 2025, 8:32 AM
Eaton Aeroquip designed this adapter for use in marine and military applications, as well as chemical processing, pulp and paper industries, and even food and beverage processing. It's also suitable for off-shore drilling.
Question by: Ricky S on Jun 18, 2025, 9:30 AM
got a hose end that’s 24 JIC male, will this elbow mate up to it or am i mixin fittings
Answer by: Customer Support on Jun 20, 2025, 6:31 AM
This adapter is a 90 degree elbow with a male SAE 37 degree (JIC) on one end and a male SAE O-Ring Boss (ORB) on the other. It is meant to connect a JIC female swivel to the SAE 37 side, while the ORB male threads into an ORB port.
