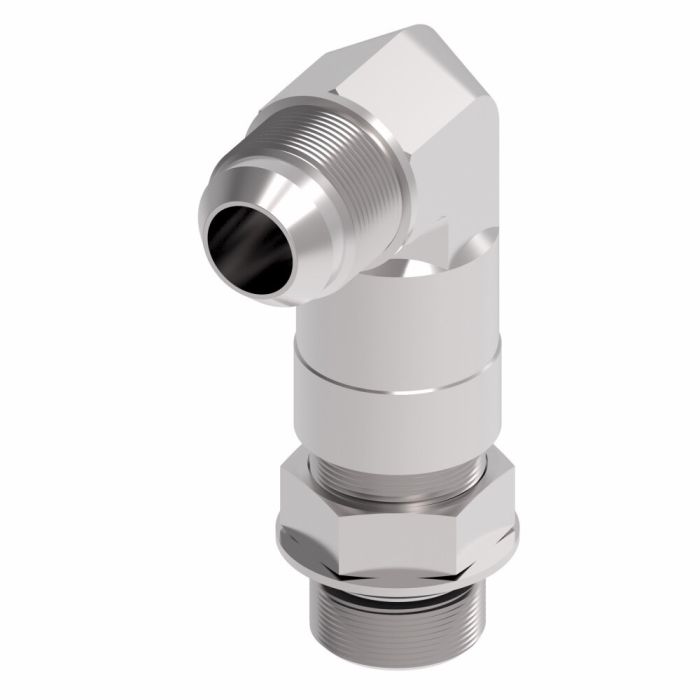

DANFOSS / EATON ADPT 4 M ORB 4 MJIC

Ask A Question

Description & Features

This Eaton Aeroquip adapter features a 90° elbow design and is constructed from carbon steel with Dura-Kote plating for enhanced corrosion resistance. The DANFOSS / EATON ADPT 4 M ORB 4 MJIC is suitable for use in marine, military, chemical processing, pulp and paper, and food and beverage applications, as well as off-shore drilling.

This SAE ORB Male to SAE 37° Male adapter offers design flexibility and supports operating pressures above SAE standards. Certifications include SAE 070320. End 1 has a 0.4375" size and is a male SAE ORB type. End 2 has a 0.4375" size and is a male SAE 37 type. Hex size 2 is 0.56". It is designed to function in minimum working temperatures of -65 degrees.

SKU: 206209-4-4S

Supplier Part Number (MPN): 206209-4-4S

Alternate Part Numbers: C1HK69, MI-00318376, MINO-00015F64968

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE Adjustable ORB
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE J1926/J514
Drop Dimensions
0.89 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Hex Size
12 mm
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Operating Temperature
-40 to 250 deg F
Series
206209 Series
Thread Size
7/16-20

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Tommy S on Jun 14, 2025, 6:37 AM
got a 206209-4-4S elbow on the machine now. is this the same thing as a 4 MORB to 4 MJIC 90 degree adapter
Answer by: Customer Support on Jun 16, 2025, 7:55 AM
You are looking at an SAE ORB male on one end and an SAE 37 degree male flare (JIC) on the other, in a 90 degree elbow. Both ends are size 4, listed as 0.4375, and the supplier part number is 206209-4-4S.
