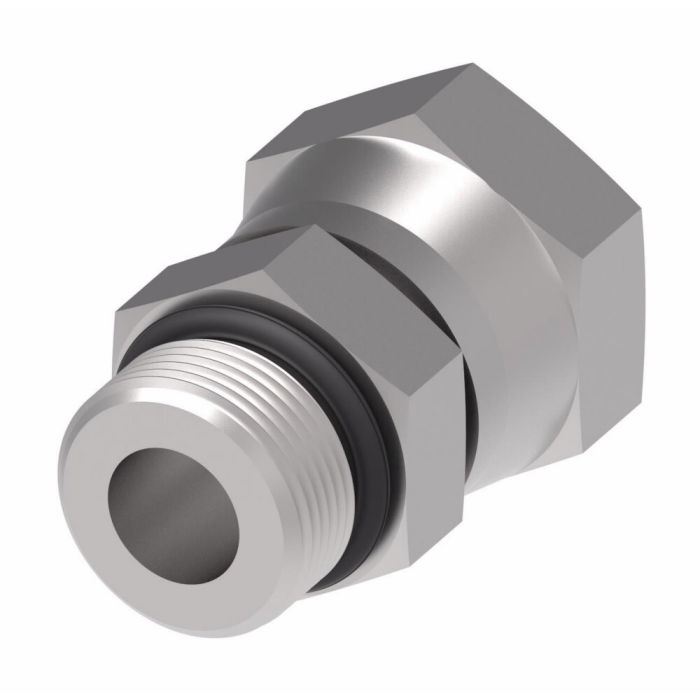

Designed for straight-line connections between National Pipe Straight Mechanical (NPSM) female and SAE O-ring Boss (ORB) male ports, this 3/4-inch carbon steel adapter handles the demands of marine, military, chemical processing, food and beverage, pulp and paper, and off-shore drilling environments. The Danfoss / Eaton ADPT FP SWIV M ORing is part of Eaton Aeroquip's 2066 Series, built to perform at operating pressures above standard SAE requirements.
Dura-Kote plating provides corrosion resistance suited to harsh and chemically aggressive service conditions. The swivel female end allows for easier installation and alignment during assembly. With a 1.25-inch hex size and a minimum working temperature of -40°F, this adapter is well suited to demanding industrial and offshore fluid conveyance applications. SAE certification confirms conformance to recognized industry standards.
SKU: 2066-12-8S
Supplier Part Number (MPN): 2066-12-8S
Alternate Part Numbers: C1JC30
|
Alternate Part Numbers
C1JC30
|
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
|
Certifications
SAE
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 1
0.75
|
End Size 2
0.75
|
End Type 1
NPSM
|
End Type 2
SAE ORB
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
1.25
|
ICC
Straight Adapters
|
Item Type
NPSM Female / SAE ORB Male Straight Adapter
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.25
|
Sub Brand
None
|
Supplier Part Number
2066-12-8S
|
Product Weight
0.16 lbs
|
