DANFOSS / EATON #8 FP (SWIVEL) X #8 MORB 45*

Description & Features

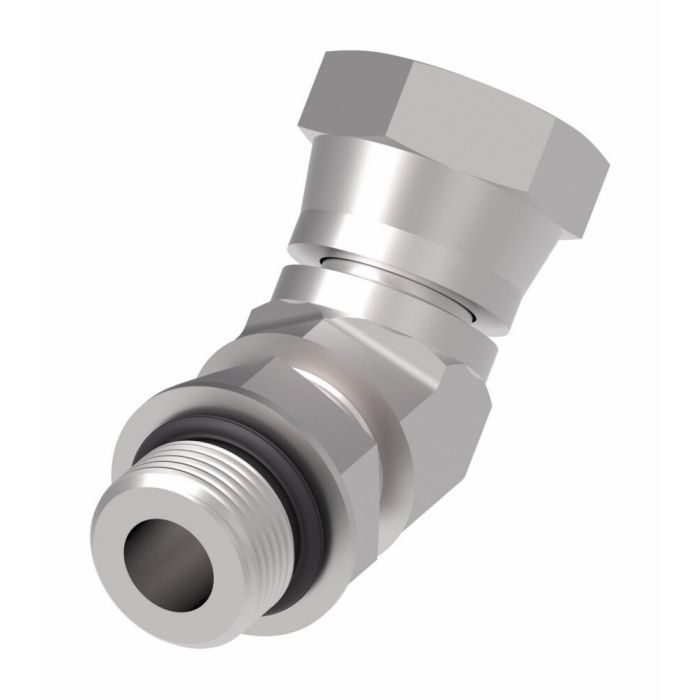

This carbon steel elbow adapter from Danfoss / Eaton features a #8 FP (swivel) to #8 MORB 45° connection. It is suitable for use in marine, military, chemical processing, pulp and paper, and food and beverage applications, as well as off-shore drilling.

This NPSM Female/SAE ORB Male 45° elbow adapter offers design flexibility and utilizes Dura-Kote plating for superior corrosion resistance. It also provides higher operating pressures above SAE standards.

SKU: 2067-8-8S

Supplier Part Number (MPN): 2067-8-8S

Alternate Part Numbers: C1AZ84, MI-00321983, MINO-00015F66157

Specifications

Brand Aeroquip® by Danfoss	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type FNPSM, Male SAE ORB	Connection Type 1 Male SAE Adjustable ORB	Connection Type 2 FNPSM	Dimension Standards SAE J1926	Drop Dimensions 1.39 in	Finish Dura-Kote™	Fitting Type 45 deg Elbow	Hex Size 1 x 1 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 2067 Series	Thread Size 3/4-16 x 1/2-14

Product Questions & Answers (1)

Question by: Rhonda M on Oct 27, 2025, 7:09 PM

How high of pressure can this elbow adapter handle?

Answer by: Customer Support on Oct 29, 2025, 6:00 AM

This adapter is designed to handle operating pressures that exceed SAE standards, making it a robust choice for demanding applications.
