Stainless Mbspp X Fnpt

Description & Features

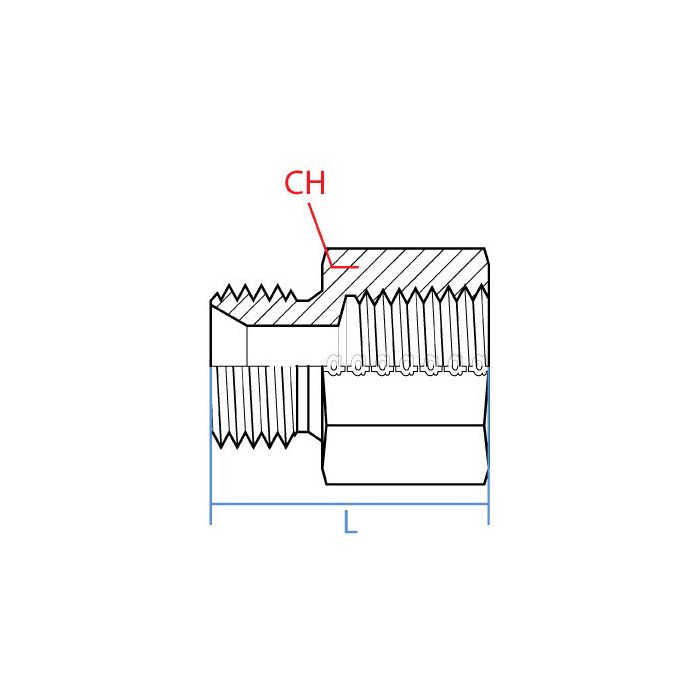

Constructed from stainless steel, this straight hydraulic adapter connects a male BSPP thread on one end to a female NPT thread on the other, making it well suited for installations where these two thread standards must interface. The male side carries a G 1/2 - 14 thread at 1/2", while the female side accepts a 1/4 - 18 NPTF connection at 1/4". Overall dimensions are 30.7mm in length with a 28.5mm wrench-flat width.

The Stainless Mbspp X Fnpt is manufactured by Adaptall, a recognized name in hydraulic adapter solutions. Stainless steel construction provides resistance to corrosion, making this fitting appropriate for demanding fluid conveyance environments where standard carbon steel hardware may be unsuitable.

SKU: SS9035-08-04

Supplier Part Number (MPN): SS9035-08-04

Specifications

CH Width 28.5mm	L Length 30.7mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9035-08-04	Product Weight 0.17 lbs

Product Questions & Answers (1)

Question by: Johnny C on May 19, 2025, 9:00 PM

got a machine with a G 1/2 - 14 port and i need to hook up a 1/4 - 18 nptf line, is this the right adapter?

Answer by: Customer Support on May 21, 2025, 6:19 AM

For that thread mix, it matches up. One end is a male BSPP thread labeled G 1/2 - 14, and the other end is a female 1/4 - 18 NPTF port.
