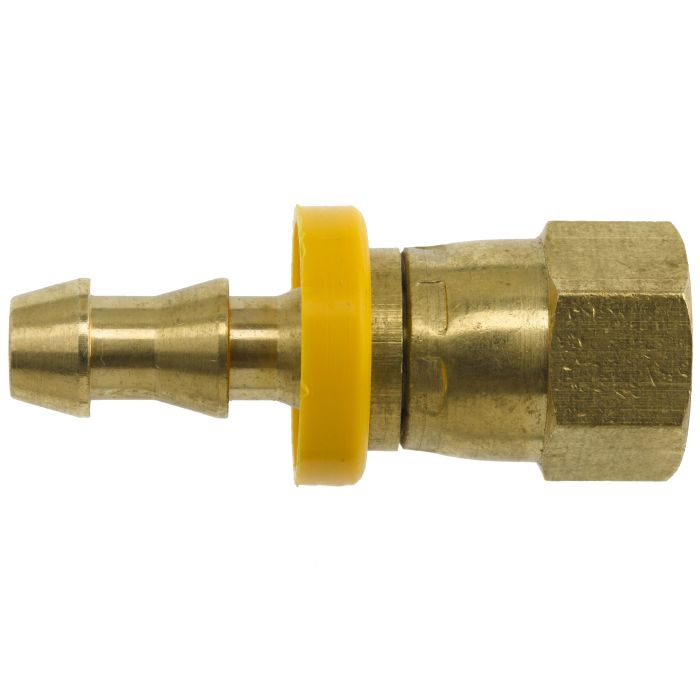

04PL-05FJS Straight Brass

Ask A Question

Description & Features

Designed for straight-through connections in hydraulic hose assemblies, the 04PL-05FJS Straight Brass fitting combines a 1/4 in. Push Lock hose barb (per ISO 12151) on one end with a 1/2-20 Female JIC Swivel 37-degree flare on the other (per SAE J514). This configuration makes it well suited for joining push-lock hose to JIC-style hydraulic lines in a compact, inline arrangement.

Machined from brass, the fitting measures 1.694 in. in overall length with a 0.625 in. hex for wrenching. The swivel end features a 0.234 in. drill size, consistent with standard JIC 37-degree flare geometry. Part of Brennan Industries' Series 2111, this fitting conforms to California Proposition 65 requirements.

SKU: 2111-04-05-B

Supplier Part Number (MPN): 2111-04-05-B

Specifications

Connection Size 1
1/4 in
Connection Size 2
5/16 in
Connection Type
Barbed, Female JIC Swivel
Connection Type 1
Push-On Hose Barb
Connection Type 2
Female SAE JIC Swivel
Dimension Standards
ISO 12151, SAE J514
Dimensions
1.694 in L
Finish
Natural
Fitting Type
Adapter
Hex Size
5/8 in
Material
Brass
Material Construction
C36000 Brass
Series
2111 Series
Thread B2 Drill Dimensions
0.234 in
Thread Size
1/2-20

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Chad B on Mar 2, 2026, 1:37 PM
Will this fitting work to connect a hose to a brake line?
Answer by: Customer Support on Mar 4, 2026, 9:07 AM
This straight brass fitting is designed to connect a 1/4 inch push lock hose to a 1/2-20 female JIC swivel 37-degree flare, so you'll want to make sure your brake line matches those specifications.
