05PL-05FJS STRAIGHT BRASS

Description & Features

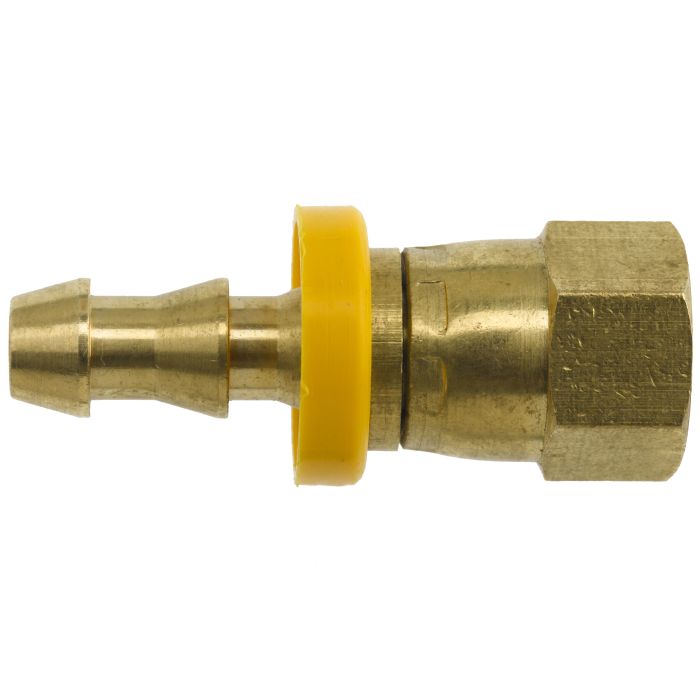

A straight brass fitting designed for hydraulic hose assemblies, the 05PL-05FJS Straight Brass from Brennan Industries connects a 5/16 push lock hose barb (ISO 12151) on one end to a 1/2-20 Female JIC Swivel with a 37-degree flare seat (SAE J514) on the other. The straight configuration keeps the connection inline, making it well-suited for compact routing in hydraulic circuits where alignment between hose and port is direct.

Brass construction offers corrosion resistance and reliable performance in a range of hydraulic fluid media. With an overall length of 1.694 inches and a hex size of 0.625 inches, this fitting is compact and straightforward to install with standard tooling. The swivel end allows the fitting body to remain stationary during tightening, reducing the risk of hose twist during assembly.

SKU: 2111-05-05-B

Supplier Part Number (MPN): 2111-05-05-B

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 2111-05-05-B	Product Weight 0.05 lbs

Product Questions & Answers (3)

Question by: Neil D on Apr 6, 2026, 8:04 AM

got a 5/16 push lock hose and need to land it on a JIC port, is this the right fitting?

Answer by: Customer Support on Apr 7, 2026, 11:51 AM

For that kind of hookup, it matches a 5/16 push lock hose barb on one end (ISO 12151) and a 1/2-20 female JIC swivel with a 37 degree flare seat on the other (SAE J514), so it’s meant to go from push lock hose to a JIC male flare connection.

Question by: Shane J on Mar 11, 2026, 1:08 PM

Will this fitting hold up okay with regular hydraulic fluid?

Answer by: Customer Support on Mar 12, 2026, 2:40 PM

The brass construction offers good corrosion resistance with standard hydraulic fluids.

Question by: Tommy D on May 19, 2025, 6:52 PM

trying to figure out if this'll work for connecting a 5/16 push lock hose to a JIC port on a hydraulic valve, is that what this fitting does?

Answer by: Customer Support on May 21, 2025, 10:20 AM

That's what it's built for. One end is a 5/16 push lock hose barb that meets ISO 12151, so it'll accept a standard 5/16 push lock hose. The other end is a 1/2-20 Female JIC Swivel with a 37-degree flare seat per SAE J514, which threads onto a male JIC port. Straight configuration keeps everything in line, no angle to account for.
