06PL-08FJS STRAIGHT BRASS

Ask A Question

Description & Features

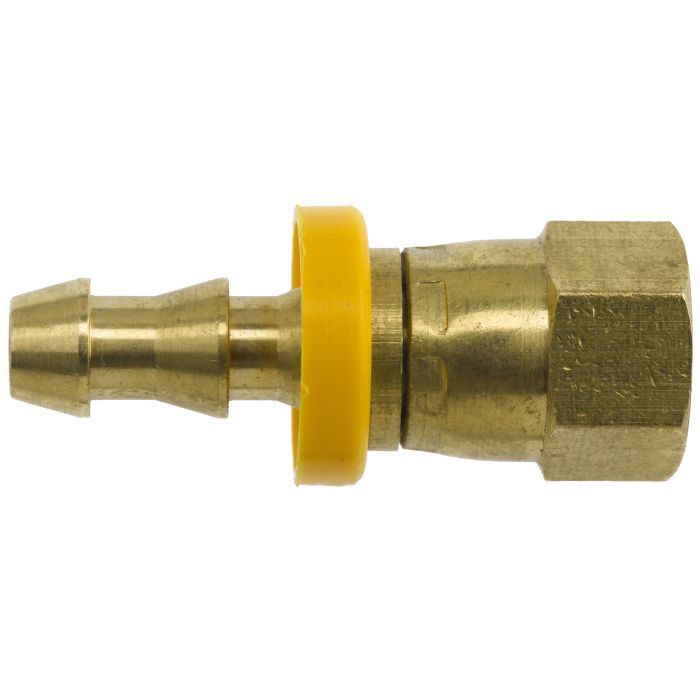

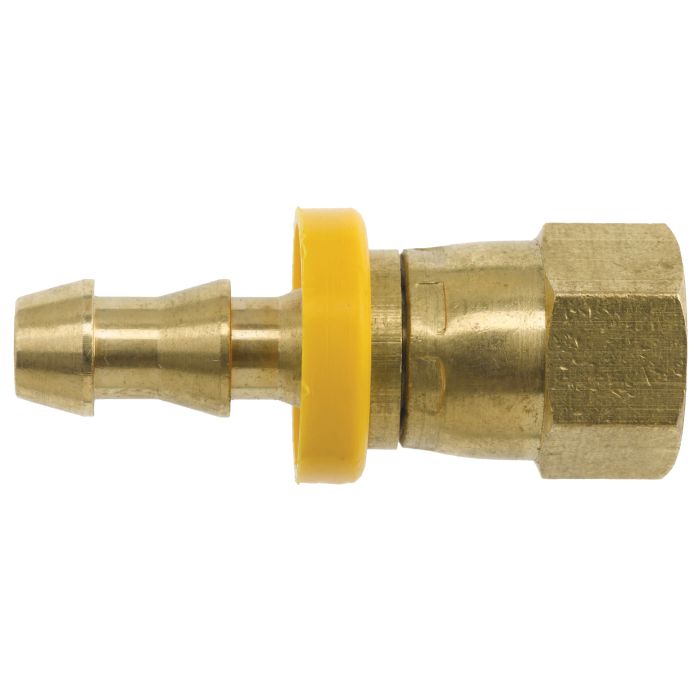

Constructed from brass, the 06PL-08FJS Straight Brass fitting from Brennan Industries connects a 3/8 push lock hose barb (ISO 12151) on one end to a 3/4-16 female JIC swivel 37-degree flare (SAE J514) on the other, in a straight configuration. This combination makes it well suited for hydraulic hose assemblies where a push lock barb connection needs to transition to a standard JIC swivel end.

With an overall length of 1.780 inches and a hex size of 0.875 inches, the fitting is compact and straightforward to install with standard tooling. The brass construction offers corrosion resistance appropriate for a range of hydraulic fluid and industrial fluid media. California residents should note that this product carries a Prop 65 warning.

SKU: 2111-06-08-B

Supplier Part Number (MPN): 2111-06-08-B

Alternate Part Numbers: 30682-6-8-B

Specifications

Color
Natural
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Barbed, Female JIC Swivel
Connection Type 1
Push-On Hose Barb
Connection Type 2
Female SAE JIC Swivel
Dimension Standards
ISO 12151, SAE J514
Dimensions
1.78 in L
Fitting Type
Adapter
Hex Size
7/8 in
Material
Brass
Material Construction
UNS C36000 Brass
Series
2111 Series
Thread Size
3/4-16

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Marvin M on Apr 11, 2025, 1:45 PM
Will this here fitting hold up okay with regular hydraulic fluid?
Answer by: Customer Support on Apr 13, 2025, 8:49 AM
The brass construction gives it good corrosion resistance with hydraulic fluid, so it should work just fine.
Question by: Chad L on Mar 20, 2026, 9:30 PM
fitting's got a push lock barb on one end and a JIC swivel on the other -- that right? just want to make sure before I order
Answer by: Customer Support on Mar 22, 2026, 1:37 PM
That's what you've got. One end is a 3/8 push lock hose barb built to ISO 12151, and the other end is a 3/4-16 female JIC swivel with a 37-degree flare per SAE J514. Straight configuration, no angle. If your hose assembly needs to bridge those two connection types, this fitting handles that transition directly.
