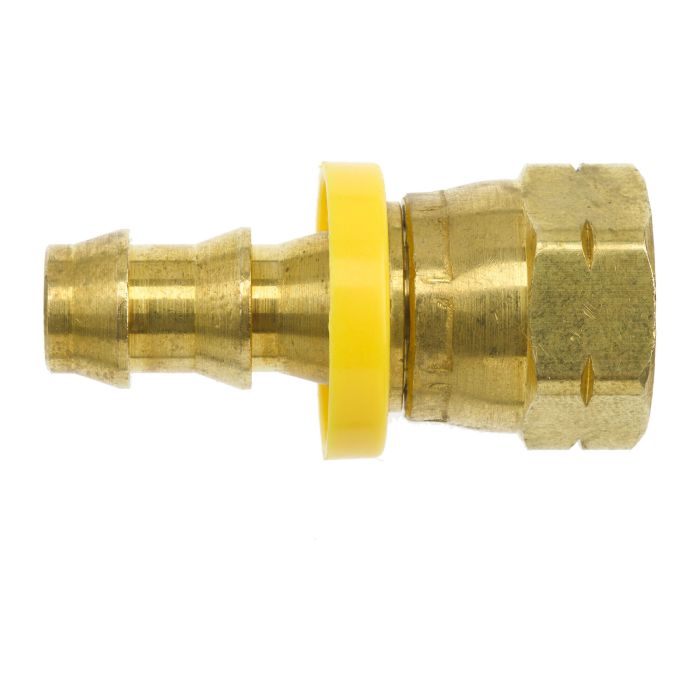

06PL-06FSAES STRAIGHT BRASS

Ask A Question

Description & Features

This 06PL-06FSAES Straight Brass fitting crafted by Brennan Industries Inc. is fabricated for reliability in industrial applications. Adhering to ISO 12151 specifications it features a 3/8" push lock hose barb and a 5/8-18 female SAE swivel 45-degree flare thread configuration.

With a C Hex of 0.750 mm and overall lengths of 1.710 mm and 0.975 mm this fitting is constructed from durable straight brass material. It is part of the 2112 series ensuring compatibility with numerous industrial systems.

For California residents please note that this product comes with a PROP-65 warning.

Supplier Part Number: 2112-06-06-B

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Barbed, Female SAE Flared
Connection Type 1
Push-Loc Barbed
Connection Type 2
Female SAE 45 deg Flare
Dimension Standards
ISO 12151
Dimensions
1.71 in L
Finish
Natural
Fitting Type
Adapter
Material
Brass
Material Construction
C36000 Brass
Series
2112 Series
Thread Size
5/8-18

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Johnny M on May 16, 2025, 9:56 PM
trying to swap out a fitting, is this one the kind that goes from a 3/8 push lock hose to a 5/8-18 female SAE swivel flare?
Answer by: Customer Support on May 18, 2025, 9:16 AM
Built as a straight brass adapter, it mates a 3/8 inch push lock hose barb (ISO 12151) on one end to a 5/8-18 female SAE swivel 45 degree flare on the other.
Question by: Steve H on Nov 19, 2025, 6:50 AM
Will this fitting work for hydraulic lines on my tractor?
Answer by: Customer Support on Nov 20, 2025, 1:48 PM
This straight brass fitting, part number 2112-06-06-B, features a 3/8" push lock hose barb and a 5/8-18 female SAE swivel 45-degree flare thread configuration, making it suitable for various industrial systems that match these specifications.
Question by: Jimmy A on Jan 11, 2026, 7:58 AM
What size hose barb and female thread does this fitting have, and will it work with a standard SAE 45-degree flare connection?
Answer by: Customer Support on Jan 12, 2026, 2:26 PM
The barb end is a 3/8" push lock style built to ISO 12151 spec, so it seats into push lock hose without clamps or ferrules. The other end is a 5/8-18 female SAE swivel with a 45-degree flare seat, which mates directly to standard SAE 45-degree male flare fittings. The swivel design lets you tighten it down without twisting the hose, which saves a lot of headache during install.
