04PL-02MP STRAIGHT BRASS

Description & Features

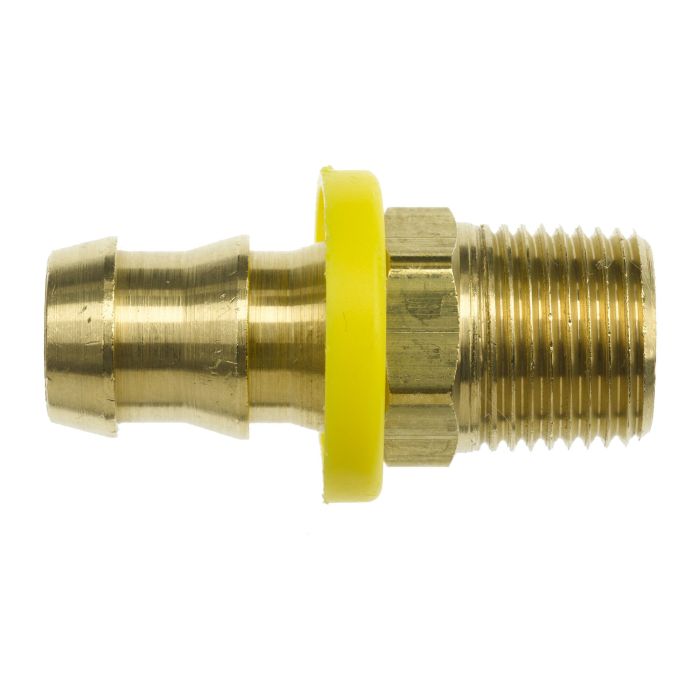

Designed for precision and reliability, the 04PL-02MP Straight Brass fitting from Brennan Industries offers a robust solution for industrial applications. Constructed from high-quality straight brass, this fitting ensures durability and corrosion resistance. It features a 1/4-inch Push Lock Hose Barb connection on one end, adhering to ISO 12151 standards, and a 1/8-27 Male NPTF thread on the other, compliant with SAE J476 standards. This combination of features makes it ideal for secure and leak-free connections in hydraulic systems.

The fitting has an overall length of 1.550 mm, with an additional length of 0.866 mm from the barb to the end of the fitting. Its compact design allows for easy integration into existing assemblies while maintaining high performance. The PROP-65 warning is applicable for California residents, ensuring safety and compliance with local regulations.

SKU: 2113-04-02-B

Supplier Part Number (MPN): 2113-04-02-B

Specifications

Connection Size 1 1/4 in	Connection Size 2 1/8 in	Connection Type Barbed, MPT	Connection Type 1 Push-On Hose Barb	Connection Type 2 Male Pipe	Dimension Standards ISO 12151, SAE J476	Dimensions 1.55 in L	Finish Natural	Fitting Type Adapter	Material Brass	Material Construction C36000 Brass	Series 2113 Series	Thread B2 Drill Dimensions 0.188 in	Thread Size 1/8-27

Product Questions & Answers (2)

Question by: Shawn F on Nov 14, 2025, 9:23 AM

What size is the NPTF thread on this fitting?

Answer by: Customer Support on Nov 16, 2025, 8:51 AM

The Male NPTF thread is 1/8-27, conforming to SAE J476 standards.

Question by: Ricky J on Feb 20, 2026, 10:03 AM

trying to hook a push-lock hose to a small NPT port. what are the two ends on this fitting?

Answer by: Customer Support on Feb 22, 2026, 6:51 AM

On one side you have a 1/4 inch push lock hose barb connection built to ISO 12151, and on the other side it has a 1/8-27 male NPTF thread made to SAE J476.
