04PL-06MP STRAIGHT BRASS

Description & Features

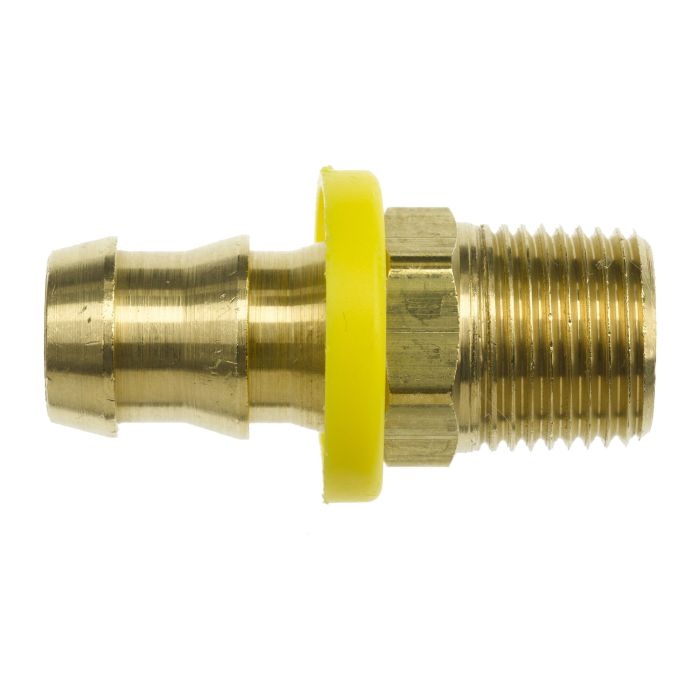

This straight brass fitting, designated as 04PL-06MP STRAIGHT BRASS, features a 1/4" push lock hose barb thread (B1) according to ISO 12151 standards, and a 3/8-18 male NPTF thread (B2) per SAE J476 specifications.

It is part of the 2113 series from Brennan Industries.

SKU: 2113-04-06-B

Supplier Part Number (MPN): 2113-04-06-B

Specifications

Brand
BRENNAN
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Barbed, MPT
Connection Type 1
Push-On Hose Barb
Connection Type 2
Male Pipe
Dimension Standards
ISO 12151, SAE J476
Dimensions
1.661 in L
Finish
Natural
Fitting Type
Adapter
Material
Brass
Material Construction
C36000 Brass
Series
2113 Series
Thread B2 Drill Dimensions
0.406 in
Thread Size
3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
04PL-02MP STRAIGHT BRASS

2113-04-02-B

1/4 in

1/8 in

1/8-27

04PL-04MP STRAIGHT BRASS

2113-04-04-B

1/4 in

1/4 in

1/4-18

05PL-02MP STRAIGHT BRASS

2113-05-02-B

5/16 in

1/8 in

1/8-27

05PL-04MP STRAIGHT BRASS

2113-05-04-B

5/16 in

1/4 in

1/4-18

06PL-04MP STRAIGHT BRASS

2113-06-04-B

3/8 in

1/4 in

1/4-18

06PL-06MP STRAIGHT BRASS

2113-06-06-B

3/8 in

3/8 in

3/8-18

BRENNAN ½” MPT X 3/8” BRASS

2113-06-08-B

3/8 in

1/2 in

1/2-14

08PL-06MP STRAIGHT BRASS

2113-08-06-B

1/2 in

3/8 in

3/8-18

08PL-08MP STRAIGHT BRASS

2113-08-08-B

1/2 in

1/2 in

1/2-14

08PL-12MP STRAIGHT BRASS

2113-08-12-B

1/2 in

3/4 in

3/4-14

10PL-08MP STRAIGHT BRASS

2113-10-08-B

5/8 in

1/2 in

1/2-14

12PL-12MP STRAIGHT BRASS

2113-12-12-B

3/4 in

3/4 in

3/4-14

Product Questions & Answers (1)

Question by: Scott K on Oct 7, 2025, 6:34 AM
trying to swap out a fitting on a push-lock hose, is this one the 1/4 push-on barb with a 3/8-18 male pipe thread?
Answer by: Customer Support on Oct 8, 2025, 5:43 PM
Match it up by the ends: B1 is a 1/4 push lock hose barb per ISO 12151, and B2 is a 3/8-18 male NPTF thread per SAE J476. It is a straight brass fitting in Brennan’s 2113 series.
