06PL-04MP STRAIGHT BRASS

Description & Features

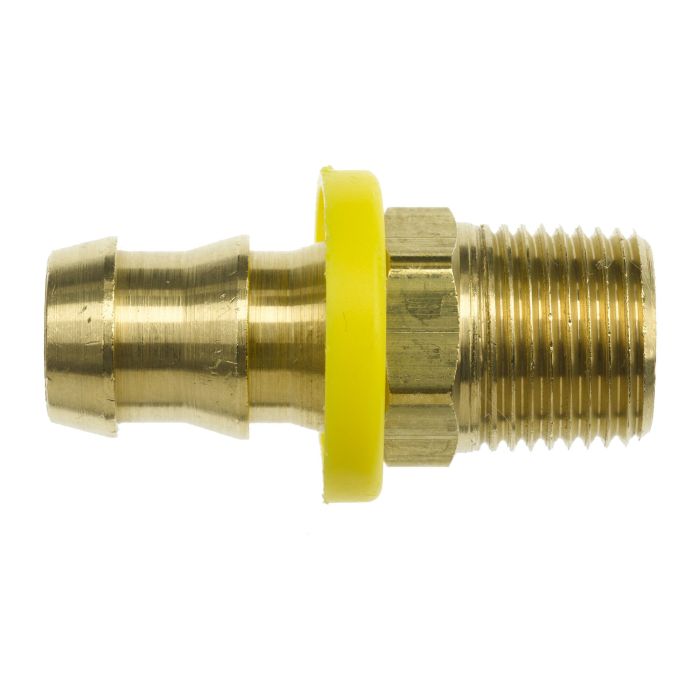

The 06PL-04MP STRAIGHT BRASS adapter by Brennan Industries Inc is a reliable solution for various industrial applications.

This adapter features a 3/8 ISO 12151 push lock hose barb thread and a 1/4-18 SAE J476 male NPTF thread ensuring compatibility with a range of industrial standards.

Manufactured from durable straight brass material it offers longevity and resistance to wear and tear.

The overall length is 1.834 mm with a length of 0.965 mm for precise fitting requirements.

Compliance with Prop-65 standards for California residents further emphasizes its safety and reliability.

Supplier Part Number: 2113-06-04-B

Specifications

Brand BRENNAN	Connection Size 1 3/8 in	Connection Size 2 1/4 in	Connection Type Barbed, MPT	Connection Type 1 Push-On Hose Barb	Connection Type 2 Male Pipe	Dimension Standards ISO 12151, SAE J476	Dimensions 1.834 in L	Finish Natural	Fitting Type Adapter	Material Brass	Material Construction C36000 Brass	Series 2113 Series	Thread B2 Drill Dimensions 0.281 in	Thread Size 1/4-18

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
2113-04-02-B	1/4 in	1/8 in	1/8-27
2113-04-04-B	1/4 in	1/4 in	1/4-18
2113-04-06-B	1/4 in	3/8 in	3/8-18
2113-05-02-B	5/16 in	1/8 in	1/8-27
2113-05-04-B	5/16 in	1/4 in	1/4-18
2113-06-06-B	3/8 in	3/8 in	3/8-18
2113-06-08-B	3/8 in	1/2 in	1/2-14
2113-08-06-B	1/2 in	3/8 in	3/8-18
2113-08-08-B	1/2 in	1/2 in	1/2-14
2113-08-12-B	1/2 in	3/4 in	3/4-14
2113-10-08-B	5/8 in	1/2 in	1/2-14
2113-12-12-B	3/4 in	3/4 in	3/4-14

Product Questions & Answers (1)

Question by: Shawn J on Mar 15, 2026, 5:39 PM

Trying to swap an old fitting out, is this one the push lock barb to 1/4-18 male NPTF deal?

Answer by: Customer Support on Mar 17, 2026, 6:44 AM

It has a 3/8 ISO 12151 push lock hose barb on one end and a 1/4-18 SAE J476 male NPTF thread on the other, so it matches that push lock to male NPTF connection.
