08PL-06MP STRAIGHT BRASS

Description & Features

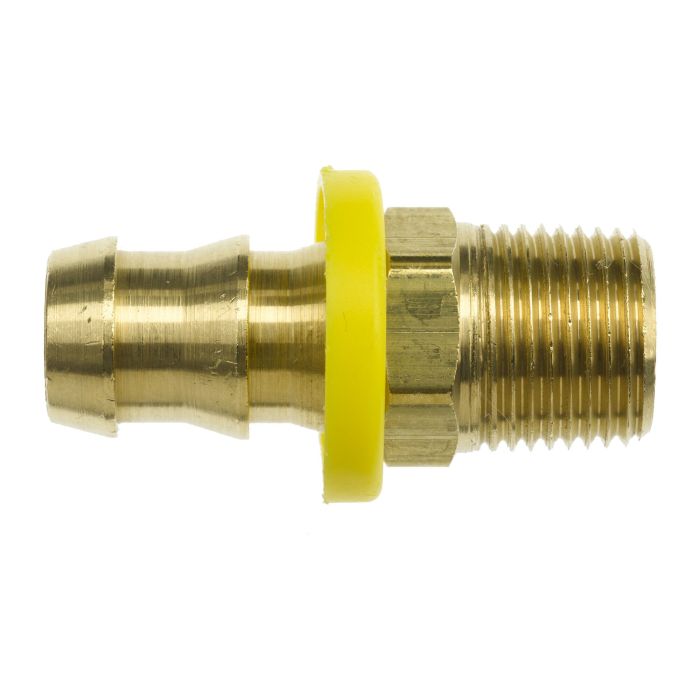

Constructed from brass, this straight push lock hose barb to male NPTF fitting provides a reliable inline connection between a 1/2 in. push lock hose barb end (per ISO 12151) and a 3/8-18 male NPTF thread (per SAE J476). The 08PL-06MP Straight Brass is part of Brennan Industries' Series 2113 and is suited for hydraulic and fluid transfer lines where a direct, no-bend transition between hose and threaded port is required.

With an overall length of 1.760 in. and a secondary length of 0.970 in., this fitting is compact enough for installations where space is limited. The brass construction offers good corrosion resistance in a range of fluid media. California residents should note that this product is subject to a Proposition 65 warning.

SKU: 2113-08-06-B

Supplier Part Number (MPN): 2113-08-06-B

Specifications

Connection Size 1 1/2 in	Connection Size 2 3/8 in	Connection Type Barbed, MPT	Connection Type 1 Push-On Hose Barb	Connection Type 2 Male Pipe	Dimension Standards ISO 12151, SAE J476	Dimensions 1.76 in L	Finish Natural	Fitting Type Adapter	Material Brass	Material Construction C36000 Brass	Series 2113 Series	Thread B2 Drill Dimensions 0.406 in	Thread Size 3/8-18

Product Questions & Answers (1)

Question by: Phil H on May 18, 2025, 7:51 PM

Just want to double check, this is brass and not some other metal that'll rust on me, right?

Answer by: Customer Support on May 20, 2025, 9:02 AM

Yes, this straight fitting is constructed from brass. Brass offers good corrosion resistance for hydraulic and fluid transfer applications.
