08PL-12MP STRAIGHT BRASS

Description & Features

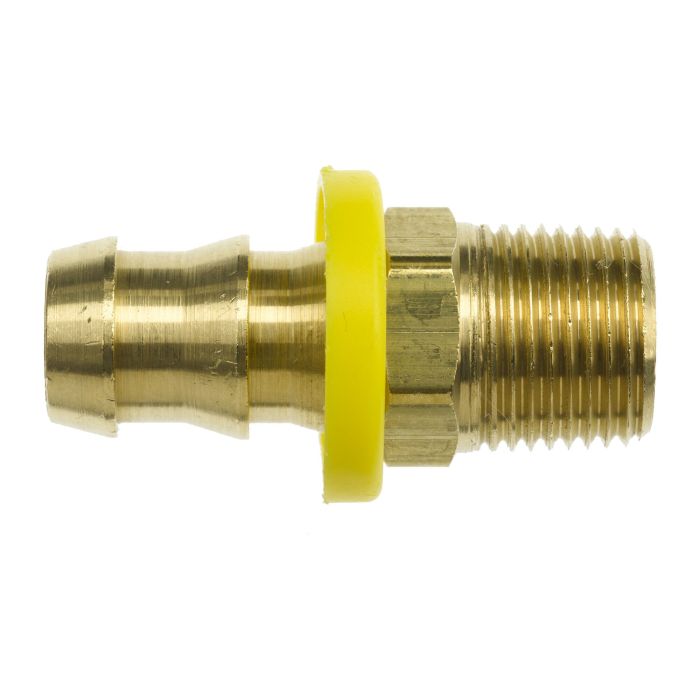

This straight brass fitting, identified as 08PL-12MP STRAIGHT BRASS, is part of the 2113 series from Brennan Industries. It features a 1/2" push-lock hose barb connection (B1) according to ISO 12151 standards.

The opposite end (B2) features a 3/4-14 male NPTF thread manufactured to SAE J476 specifications. The overall length is 1.970 mm.

SKU: 2113-08-12-B

Supplier Part Number (MPN): 2113-08-12-B

Specifications

Connection Size 1 1/2 in	Connection Size 2 3/4 in	Connection Type Barbed, MPT	Connection Type 1 Push-On Hose Barb	Connection Type 2 Male Pipe	Dimension Standards ISO 12151, SAE J476	Dimensions 1.97 in L	Finish Natural	Fitting Type Adapter	Material Brass	Material Construction C36000 Brass	Series 2113 Series	Thread B2 Drill Dimensions 0.719 in	Thread Size 3/4-14

Product Questions & Answers (1)

Question by: Ronnie B on Sep 17, 2025, 6:17 AM

So this has a push-lock on one side and threads on the other? Just wanna be sure I'm picturing it right.

Answer by: Customer Support on Sep 19, 2025, 6:55 AM

That's correct. On one end, it features a 1/2" push-lock hose barb connection, and the other end has a 3/4-14 male NPTF thread.
