10PL-08MP STRAIGHT BRASS

Description & Features

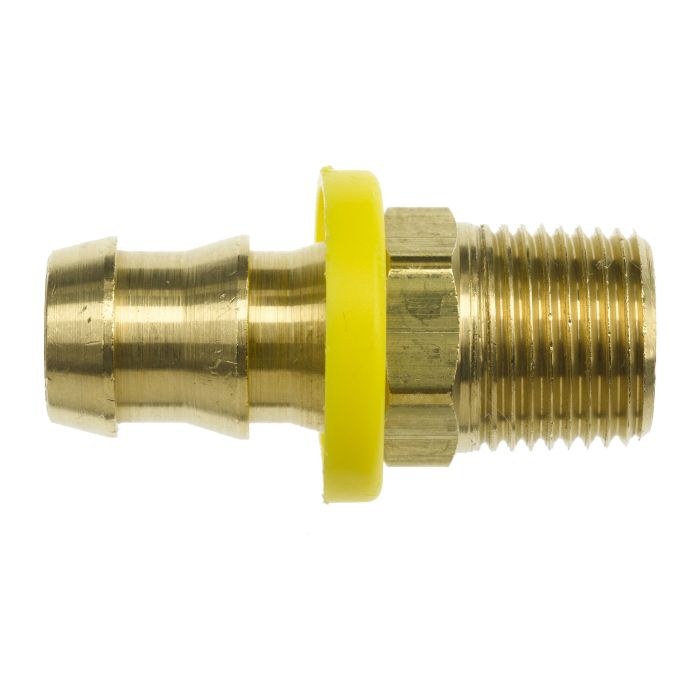

The 10PL-08MP Straight Brass fitting from Brennan Industries Inc. is designed for reliable connections in industrial applications. Engineered with high-quality straight brass it ensures durability and robustness for demanding environments.

With an overall length of 2.550 mm and a secondary length of 1.500 mm this fitting meets the ISO 12151 specification for Push Lock Hose Barb and the SAE J476 standard for Male NPTF threads. The 5/8 size of Thread B1 and the 1/2-14 size of Thread B2 make it suitable for various seamless integration requirements.

The 0.531 mm B2 drill thread adds precision to the fitting's design making it highly efficient for specific industrial needs. With compliance to PROP-65 warning guidelines this product aligns with industry safety standards.

Supplier Part Number: 2113-10-08-B

Specifications

Connection Size 1 5/8 in	Connection Size 2 1/2 in	Connection Type Barbed, MPT	Connection Type 1 Push-On Hose Barb	Connection Type 2 Male Pipe	Dimension Standards ISO 12151, SAE J476	Dimensions 2.55 in L	Finish Natural	Fitting Type Adapter	Material Brass	Material Construction C36000 Brass	Series 2113 Series	Thread B2 Drill Dimensions 0.531 in	Thread Size 1/2-14

Product Questions & Answers (2)

Question by: Shane T on Nov 26, 2025, 10:27 AM

Thread B2 on this thing is listed as Male NPTF at 1/2-14, that's a dry-seal thread, right? Wanting to make sure it'll seal proper without tape or compound if I need it to.

Answer by: Customer Support on Nov 28, 2025, 6:59 AM

Male NPTF threads are built to form a mechanical seal through thread-to-thread contact, so yes, that's the nature of the dry-seal design under SAE J476. Whether you use thread sealant comes down to your system requirements and how critical a leak-free connection is in your application, but the thread form itself is engineered to seal without relying on compounds alone.

Question by: Larry M on Oct 14, 2025, 7:36 AM

got a push lock hose and need to thread into a 1/2-14 nptf port, is that what this fitting is set up for

Answer by: Customer Support on Oct 15, 2025, 11:24 AM

For a push lock hose connection to a male pipe thread, this part matches that setup. The B1 end is an ISO 12151 push lock hose barb, and the B2 end is a 1/2-14 male NPTF thread built to the SAE J476 standard.
