12PL-12MP STRAIGHT BRASS

Description & Features

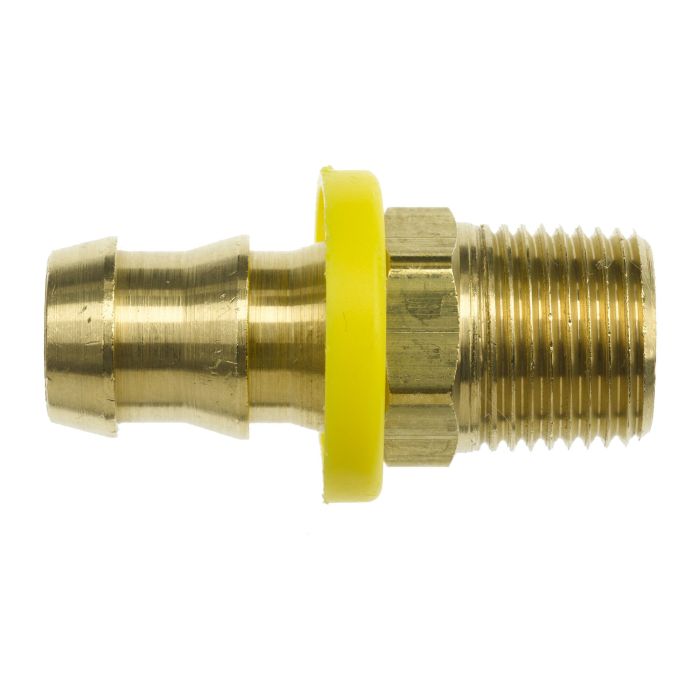

The 12PL-12MP Straight Brass offers exceptional compatibility with various industrial applications. This adapter features a push lock hose barb thread type conforming to ISO 12151 standards ensuring secure and efficient connections.

Designed by Brennan Industries Inc this straight brass adapter meets the SAE J476 specification for the male NPTF thread type. The product's overall length measures 2.480 mm while the secondary length stands at 1.457 mm providing precise dimensions suitable for specific configurations.

The adapter's raw material type straight brass ensures durability and reliability in demanding environments. The male NPTF thread size is 3/4-14 along with a thread drill diameter of 0.719 mm enhancing its functionality and versatility. The push lock hose barb thread size is also 3/4 making it an optimal selection for various industrial setups.

Supplier Part Number: 2113-12-12-B

Specifications

Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Barbed, MPT	Connection Type 1 Push-On Hose Barb	Connection Type 2 Male Pipe	Dimension Standards ISO 12151, SAE J476	Dimensions 2.48 in L	Finish Natural	Fitting Type Adapter	Material Brass	Material Construction C36000 Brass	Series 2113 Series	Thread B2 Drill Dimensions 0.719 in	Thread Size 3/4-14

Product Questions & Answers (1)

Question by: Randy A on Aug 24, 2025, 12:16 PM

does this fitting work with standard 3/4 push lock hose, or do i need something special to get it to connect up right?

Answer by: Customer Support on Aug 26, 2025, 6:22 AM

Push lock hose in 3/4 inch size is exactly what this barb end is built for. The hose barb side follows ISO 12151, so as long as your hose matches that sizing, it should seat and lock without any adapters or extra hardware in between.
