04PL-05MIFS Straight Brass

Description & Features

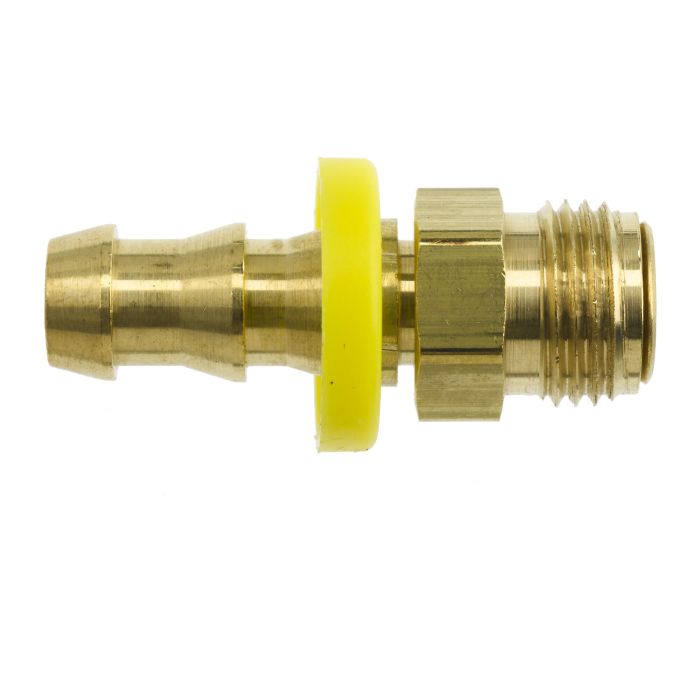

A straight brass fitting designed for push lock hose barb to male inverted flare swivel connections, the 04PL-05MIFS Straight Brass is part of Brennan Industries' Series 2115 hydraulic fittings. The barb end conforms to ISO 12151 and accepts 1/4 in. push lock hose, while the swivel end features a 1/2-20 male inverted flare thread, a combination suited to hydraulic line assemblies requiring a secure, leak-resistant connection in a compact straight configuration.

Machined from brass, this fitting offers reliable compatibility with a range of hydraulic fluids and is well-suited for use in systems where corrosion resistance and moderate pressure handling are priorities. Overall assembled length measures 1.614 in., with a secondary length dimension of 0.870 in. California residents should note applicable Proposition 65 warnings associated with this product.

SKU: 2115-04-05-B

Supplier Part Number (MPN): 2115-04-05-B

Specifications

Brand BRENNAN	Connection Size 1 1/4 in	Connection Size 2 5/16 in	Connection Type Barbed, Male Inverted Flared	Connection Type 1 Push-Loc Barbed	Connection Type 2 Male Inverted Flare	Dimension Standards ISO 12151	Dimensions 1.614 in L	Finish Natural	Fitting Type Adapter	Material Brass	Material Construction C36000 Brass	Series 2115 Series	Thread Size 1/2-20

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
2115-04-04-B	1/4 in	1/4 in	7/16-24
2115-05-05-B	5/16 in	5/16 in	1/2-20
2115-05-06-B	5/16 in	3/8 in	5/8-18
2115-08-08-B	1/2 in	1/2 in	3/4-18
2115-10-10-B	5/8 in	5/8 in	7/8-18

Product Questions & Answers (2)

Question by: Tony G on Mar 24, 2026, 8:09 PM

What size hose does this fitting take? Just want to make sure I'm getting the right size.

Answer by: Customer Support on Mar 26, 2026, 6:02 AM

It's designed for use with 1/4 inch push lock hose. The barb end conforms to ISO 12151 standards.

Question by: Kurt B on Sep 26, 2025, 10:52 AM

Got a 1/4 in. push lock hose I'm trying to tie into a line with a 1/2-20 male inverted flare swivel on the other end. this fitting cover that combo?

Answer by: Customer Support on Sep 28, 2025, 9:19 AM

That's what this one's built for. One end is a push lock hose barb sized for 1/4 in. hose and conforms to ISO 12151, so it'll seat right onto standard push lock hose. The other end is a 1/2-20 male inverted flare swivel, which handles the transition over to your inverted flare line. Brass construction keeps it solid across a range of hydraulic fluids, and it runs straight through with no angle or offset, so it fits tight spots without adding bulk. Overall length comes in at 1.614 in., which helps when you're working in a confined assembly.
