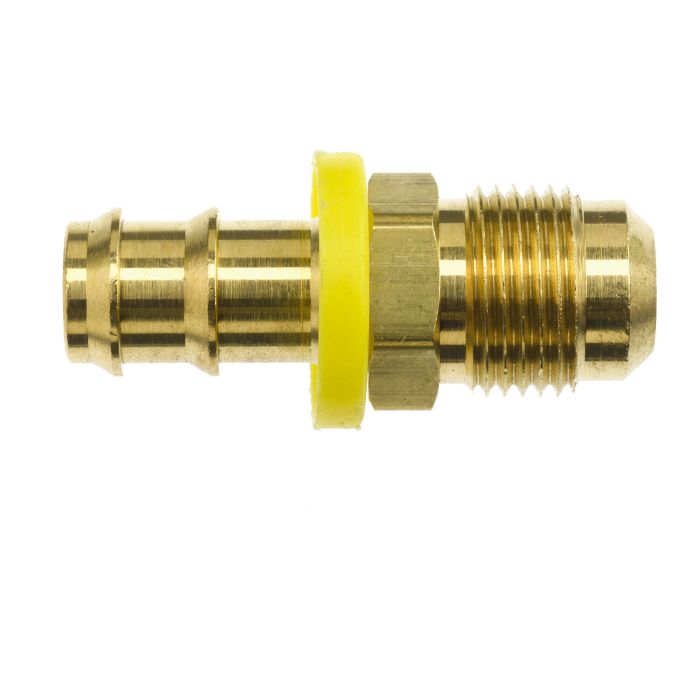

main product photo

04PL-04MJ STRAIGHT BRASS

Ask A Question

Description & Features

This straight fitting features a 1/4 PUSH LOCK HOSE BARB connection to 7/16-20 MALE JIC SAE 37 DEGREE FLARE. The 04PL-04MJ STRAIGHT BRASS fitting is part of the 2116 series from Brennan Industries.

It is constructed from straight brass and conforms to ISO 12151 standards for the B1 thread and SAE J514 specifications for the B2 thread.

SKU: 2116-04-04-B

Supplier Part Number (MPN): 2116-04-04-B

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Barbed, Male SAE Flared
Connection Type 1
Push-On Hose Barb
Connection Type 2
Male SAE 45 deg Flare
Dimension Standards
SAE J514
Dimensions
1-1/2 in L
Finish
Natural
Fitting Type
Adapter
Material
Brass
Material Construction
C36000 Brass
Series
2116 Series
Thread Drill Dimensions
0.172 in
Thread Size
7/16-20

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Roger H on Jan 24, 2026, 5:37 PM
Does this fitting work with standard 1/4 inch push lock hose, or do I need something special to get it to seat right?
Answer by: Customer Support on Jan 26, 2026, 12:10 PM
Push lock barb end accepts standard 1/4 inch push lock hose. Just push the hose fully onto the barb until it seats and you're good. The male JIC end is a 7/16-20 thread with a 37 degree flare, so make sure the mating port or fitting on the other end matches that spec before you torque it down.
Question by: Sheila C on Sep 10, 2025, 5:49 PM
got a push-lock hose with a 1/4 barb on it. will this screw right onto a 7/16-20 male JIC port?
Answer by: Customer Support on Sep 12, 2025, 6:42 AM
On the hose side, it’s a 1/4 push lock hose barb. On the threaded side, it’s a 7/16-20 male JIC SAE 37 degree flare, made to SAE J514. That means it threads into a matching female JIC 7/16-20 flare connection.
